Chapter 2: Installation
32
Connecting the Network Cables
The AT-MC102XLPCI Media Converter has an SC type fiber optic
connector with a transmit and receive ports and one twisted-pair
connector.
See Appendix A, “Fiber Optic Port Specifications” on page 39 for the fiber
optic cable specifications.
For the AT-MC102XLPCI Media Converter, you need a twisted-pair cable.
For cable specifications and pinout information, see Appendix A, “RJ-45
Twisted-Pair Port Specifications” on page 38.
To connect a network cable to the adapter, perform the following
procedure:
Warning
The fiber optic ports contain a Class 1 LED device. When the ports
are disconnected, always cover them with the provided plug.
Exposed ports may cause skin or eye damage.
1. On the AT-MC102XLPCI Media Converter, connect the fiber optic
cable to the Ethernet fiber optic port. See Figure 11.

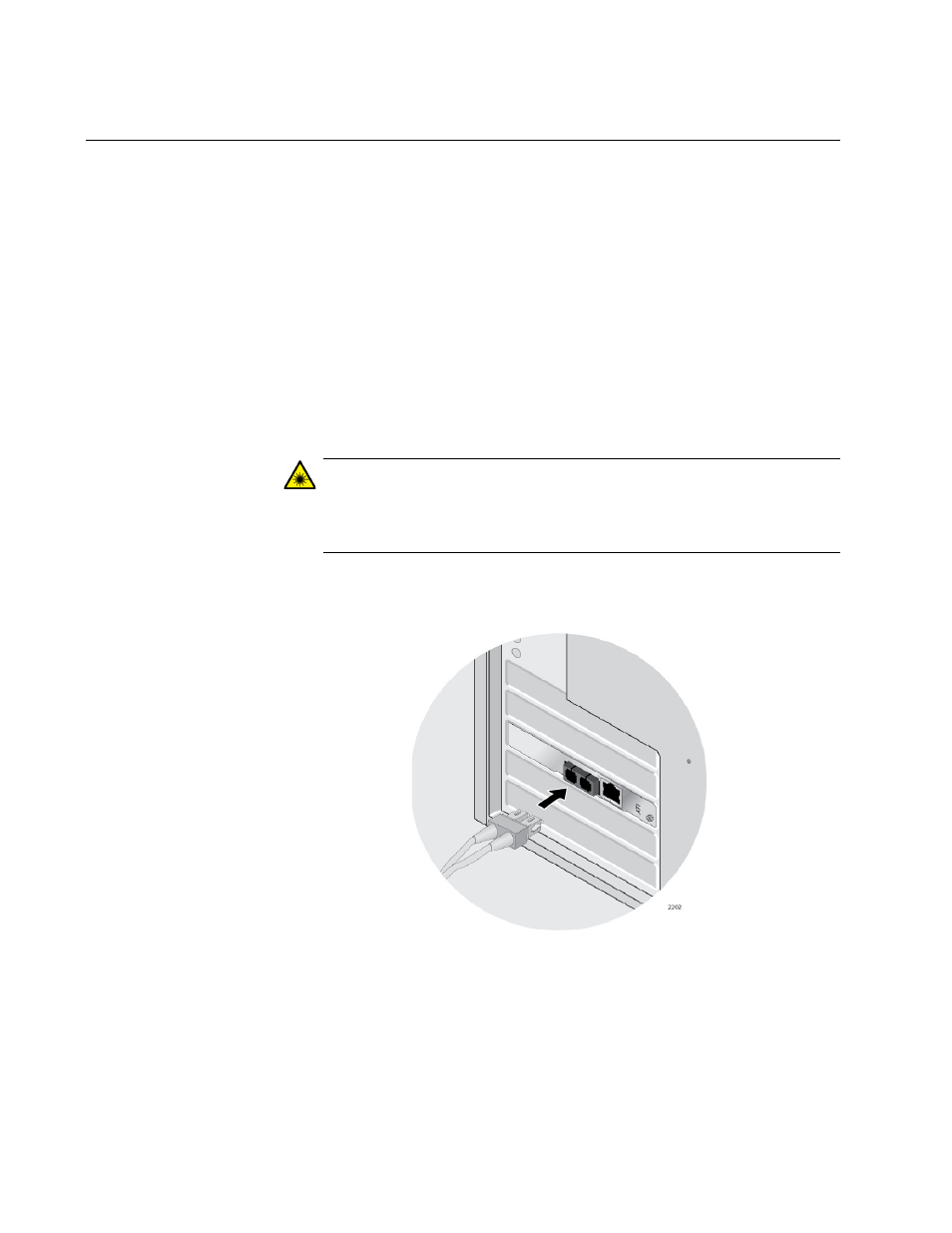

Figure 11. Connecting the Fiber Optic Cable to the AT-MC102XLPCI
Media Converter
2. Connect the opposite end of the fiber optic cable to the link partner of
the AT-MC102XLPCI Media Converter.
