Chapter 1: Product Overview
16
Key Features
The AT-MC102XLPCI Media Converter features a 100Base-TX twisted-
pair port and an 100Base-FX fiber optic port. The twisted-pair port has an
RJ-45 connector and a maximum operating distance of 100 meters (328
feet). The fiber optic port has a dual SC connector and a maximum
operating distance of 2 kilometers (1.2 miles).
This media converter operates at 100 Mbps and is configured from the
factory for Auto-Negotiation mode.
The AT-MC102XLPCI Media Converter is designed to be installed in a
PCI bus slot of a PC and does not require any software configuration or
management.
An AT-MC102XLPCI Media Converter is illustrated in Figure 1.

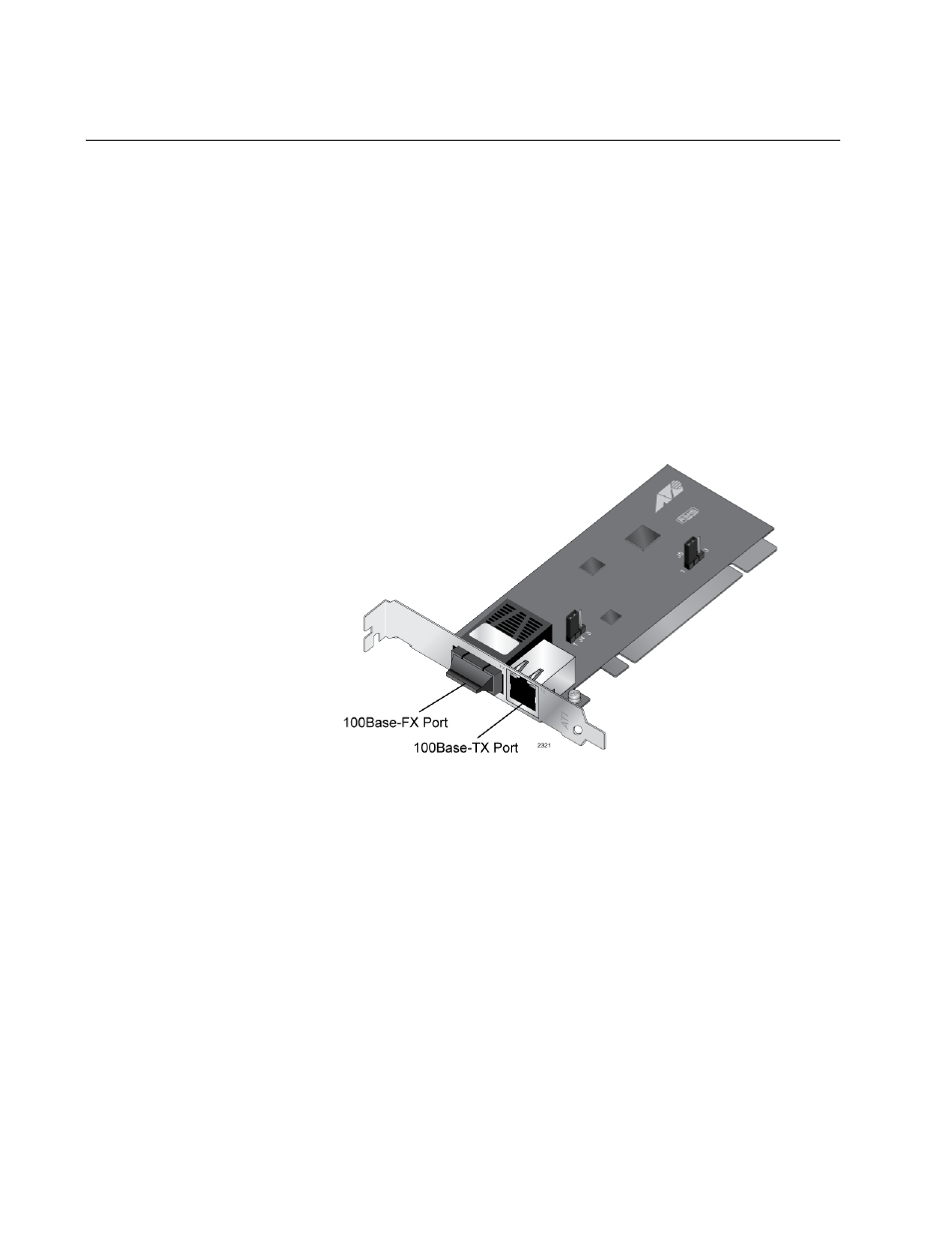

Figure 1. AT-MC102XLPCI Media Converter
The AT-MC102XLPCI Media Converter has the following key features:
❒
100Base-TX twisted-pair port Half- or full-duplex operation - See
Figure 1.
❒
100Base-FX fiber optic port - See Figure 1.
❒
See Status LEDs on page 17 for more information.
❒
See Auto MDI/MDIX on page 18 for more information.
❒
See Auto-Negotiation on page 19 for more information.
❒
See MissingLink & Link Test Features on page 21 for more
information.
