PC 6170 User’s Manual
C h a p t e r 2
Hardware Installation
The PC 6170 provides lots of flexible ways for you to select different
configuration such as CPU, CD-ROM and more. The chapter will show
you how to install the hardware. It includes:
2.1 CPU and DRAM Installation
The standard PC 6170 system was designed Pentium M level CPUs.
The build-in CPU board provides one 184-pin DDR DIMM socket
that supports system memory up to 1GB. And, there is one mini-
PCI type-III Socket.
When upgrading the CPU, DRAM, or Mini-PCI, refer to the following
instructions and illustration:

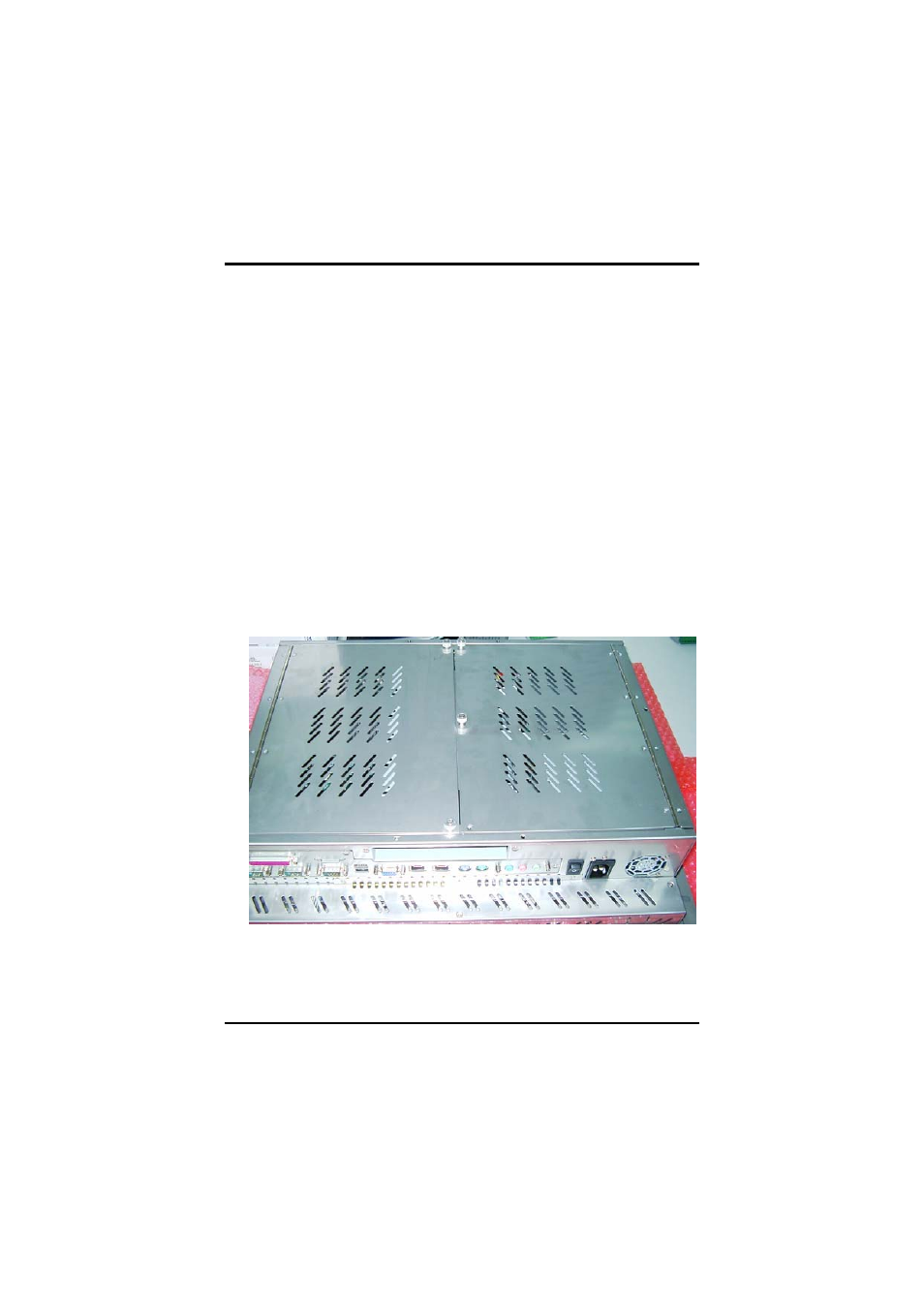

1. Unscrew five screws in the back door.
Hardware Installation 9
