Chapter 1
Getting Started
Overview

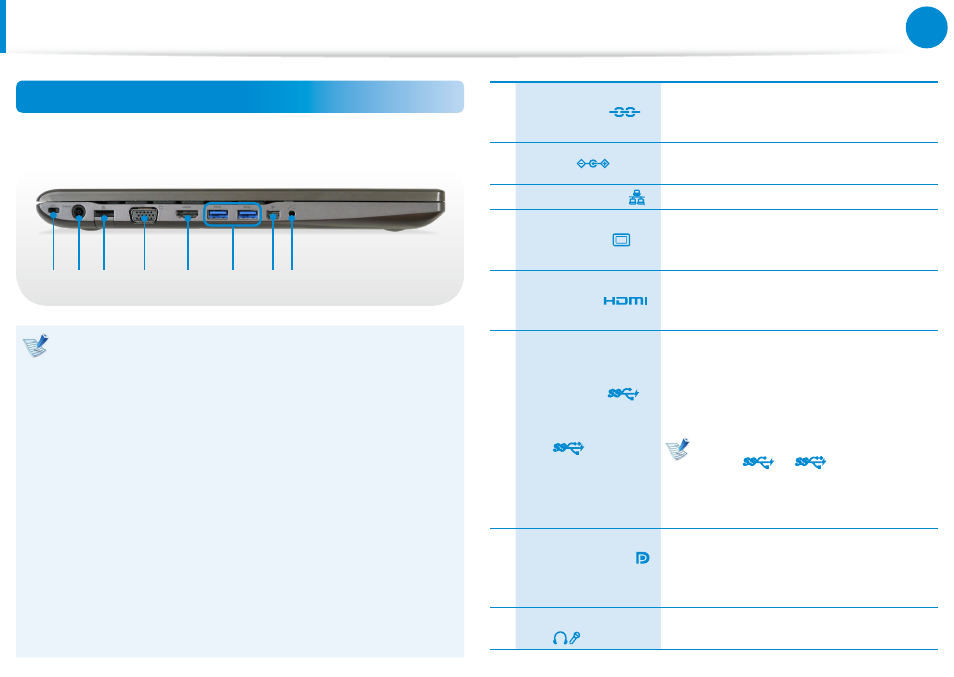

Left View
► For 17.3 inch models
4 5 1 2 3 6 7 8
What is a chargeable USB port?
USB device accessing and charging functions are •
supported.
The USB charging function is supported regardless of
•
whether the power is turned on or off.
Charging a device through a chargeable USB port may take
•
longer than general charging.
Using the Chargeable USB function when the computer is
•
running on battery power reduces the battery usage time.
The user cannot evaluate the charging status of the USB
•
device from the computer.
This may not be supported for some USB devices.
•
You can turn the Chargeable USB function • ON/OFF by
selecting the Settings > Power Management > USB
Charging option. (Optional)
1 Security Slot
You can secure the computer by
connecting a lock and cable to the
Security Slot.
2 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
3 Wired LAN Port Connect the Ethernet cable to this port.
4 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
5
Digital Video/Audio
Port (HDMI)
(Optional)
You can connect an HDMI cable to this
port. Using this port, you can enjoy digital
video and audio on the TV.
6
USB 3.0 Port
or
Chargeable USB 3.0
Port
(Optional)
USB ports to which you can connect USB
devices as well as a chargeable USB port
are provided.
Using a chargeable USB port, you can
access or charge a USB device.
The port can be distinguished by the
figure ( or ) printed on the
port of the product.
For Windows XP, the USB 3.0 feature
may be restricted.
7 Mini DisplayPort
(Mini DP)
A port used to connect a Mini DisplayPort
cable (Optional). You can view digital
videos by connecting to a TV or monitor
with a Mini DisplayPort.
8 Ear-set / headset
Jack
This is the jack for connecting an ear-set
or headset.
