26

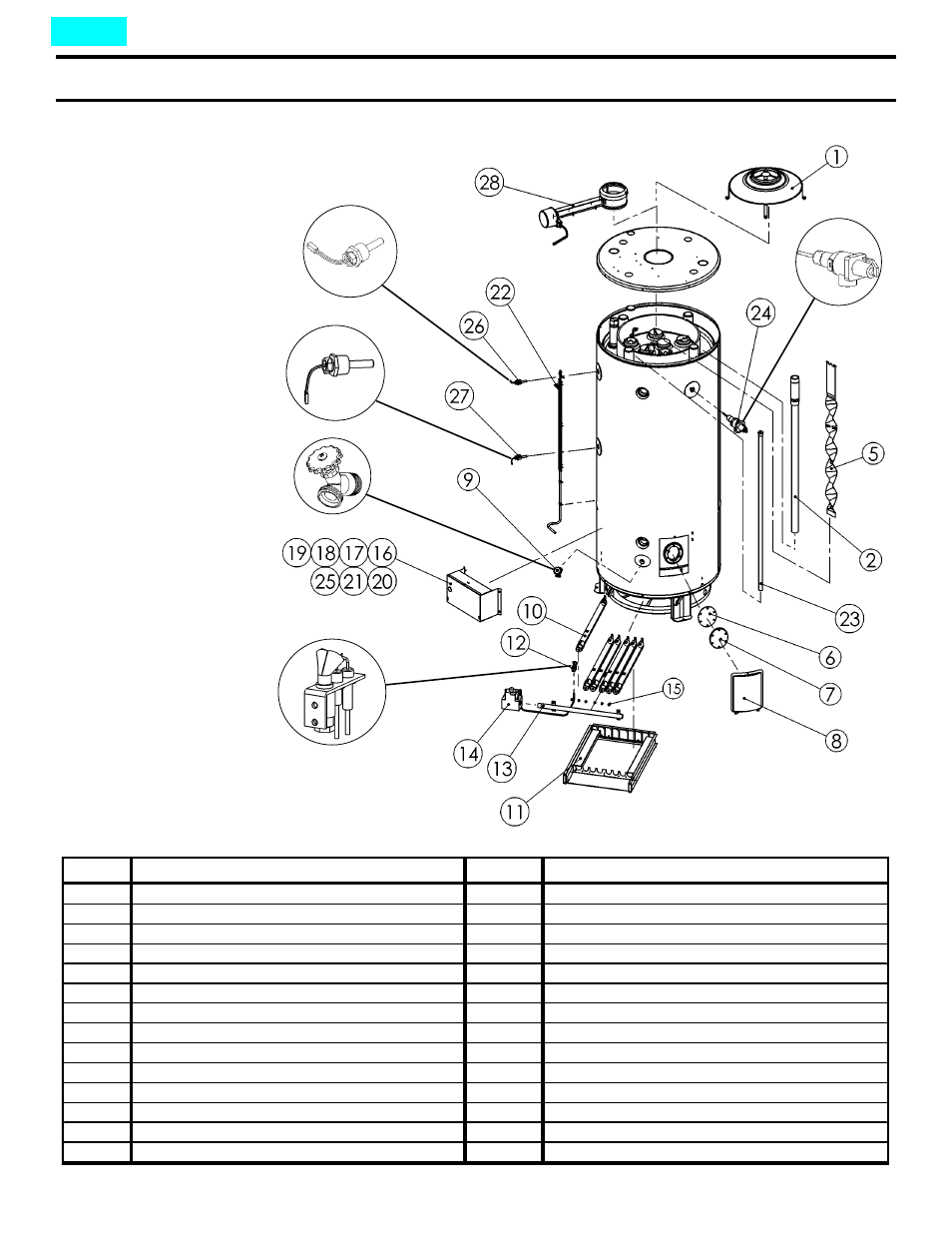

REPAIR PARTS ILLUSTRATION
Repair Parts List
When ordering repair parts always give the following
information:
1. Model, serial, and product number
2. Type of gas
3. Item number
4. Parts description
No. Part Name and Description No. Part Name and Description
1 Drafthood 15 Main Burner Orifice(s)
2 Diptube (Top) 16 Control Box Cover
3 Diptube (Front) (Optional not pictured) 17 Transformer
4 Diptube (Back) (Optional not pictured) 18 Ignition Control Module
5 Flue Baffles 19 Thermostat board
6 Clean Out Gasket 20 ECO Reset Board
7 Clean Out Cover 21 Control Box
8 Clean Out Cover Jacket 22 Wiring Harness
9 Drain Valve 23 Anode Rod(s)
10 Main Burner Tube(s) 24 T&P Valve
11 Burner Tray 25 Temp. Control Potentiometer
12 Pilot Burner Assembly 26 Upper Temperature Sensor/ECO
13 Main Burner Manifold 27 Lower Temperature Sensor
14 Gas Valve 28 Flue Damper
