TRACER 5045 System Manual Section 5 User Interface Guide
612805045L1-1B © 2004 ADTRAN, Inc. 45
>TRACER S YSTEM C ONFIGURATION

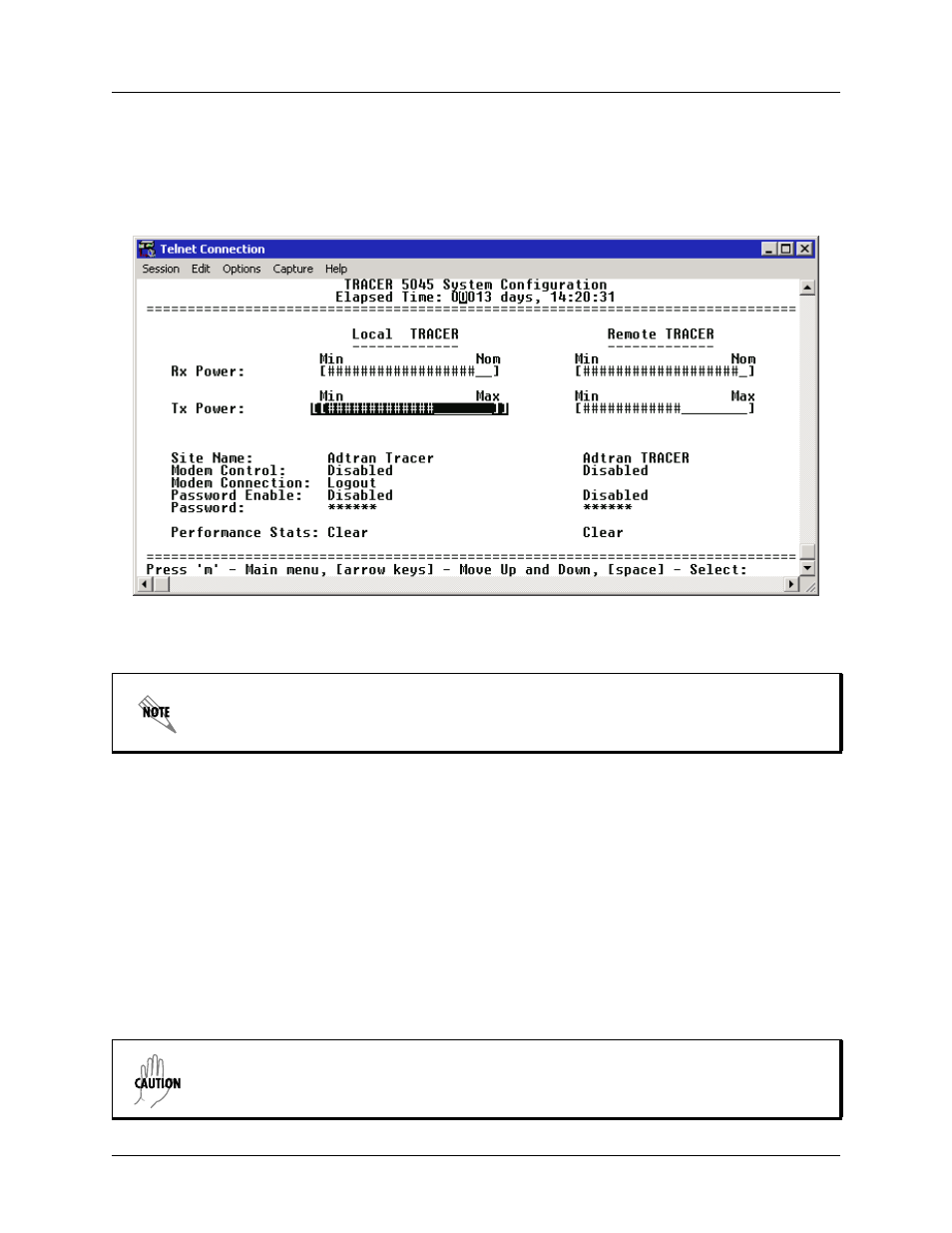

Figure 4 shows the TRACER 5045 System Configuration menu page. System configuration parameters for
both the local and remote TRACER 5045 units are available through this menu page.
Figure 4. TRACER 5045 System Configuration
>TRACER S YSTEM C ONFIGURATION > RX P OWER
Displays the approximate receiver levels (for both the local and remote units) using a series of symbols ( # ).
The more symbols ( # ) displayed, the stronger the signal. If the link is down in either direction and remote
end data is unavailable, D ATA N OT A VAILABLE
displays in place of the symbols ( # ). This parameter is
display only.
>TRACER S
YSTEM
C
ONFIGURATION
> TX P
OWER
Allows the transmitter levels (for both the local and remote units) to be adjusted. The current transmitter
level is displayed using a series of symbols (
# ). The more symbols ( # ) displayed, the stronger the signal. If
the link is down and remote end data is unavailable, D ATA N OT A VAILABLE
displays in place of the symbols
( # ).
Press <1> from any menu in the TRACER 5045 VT100 menu structure to access the
TRACER System Configuration menu page.
Reducing the transmitter power of the remote TRACER 5045 could cause the RF link to
drop, requiring a technician to increase the transmit power using the menu system at the
remote site.
