Example 3 – Campbell Scientific Sentek TriSCAN® Manual v 1.2a User Manual
Page 47

TriSCAN Manual Version 1.2a
Copyright © 1991 – 2004 Sentek Pty Ltd All rights reserved
Page 40
Example 3
Figure 12 illustrates the movement of salts at the bottom of the wetting front in drip irrigation in IrriMAX
®
6.
Soil moisture data showed that the bottom of the wetting front just reached to a depth of 50 cm with each
irrigation
With successive irrigations, estimated EC increased from 1162µS/cm on 20 November, to 1233µS/cm on 22
November and 1287µS/cm on 23 November at this depth.
Rainfall of 22mm on 23 November caused movement of the wetting front from the overlying layers, which
diluted the solute concentration.

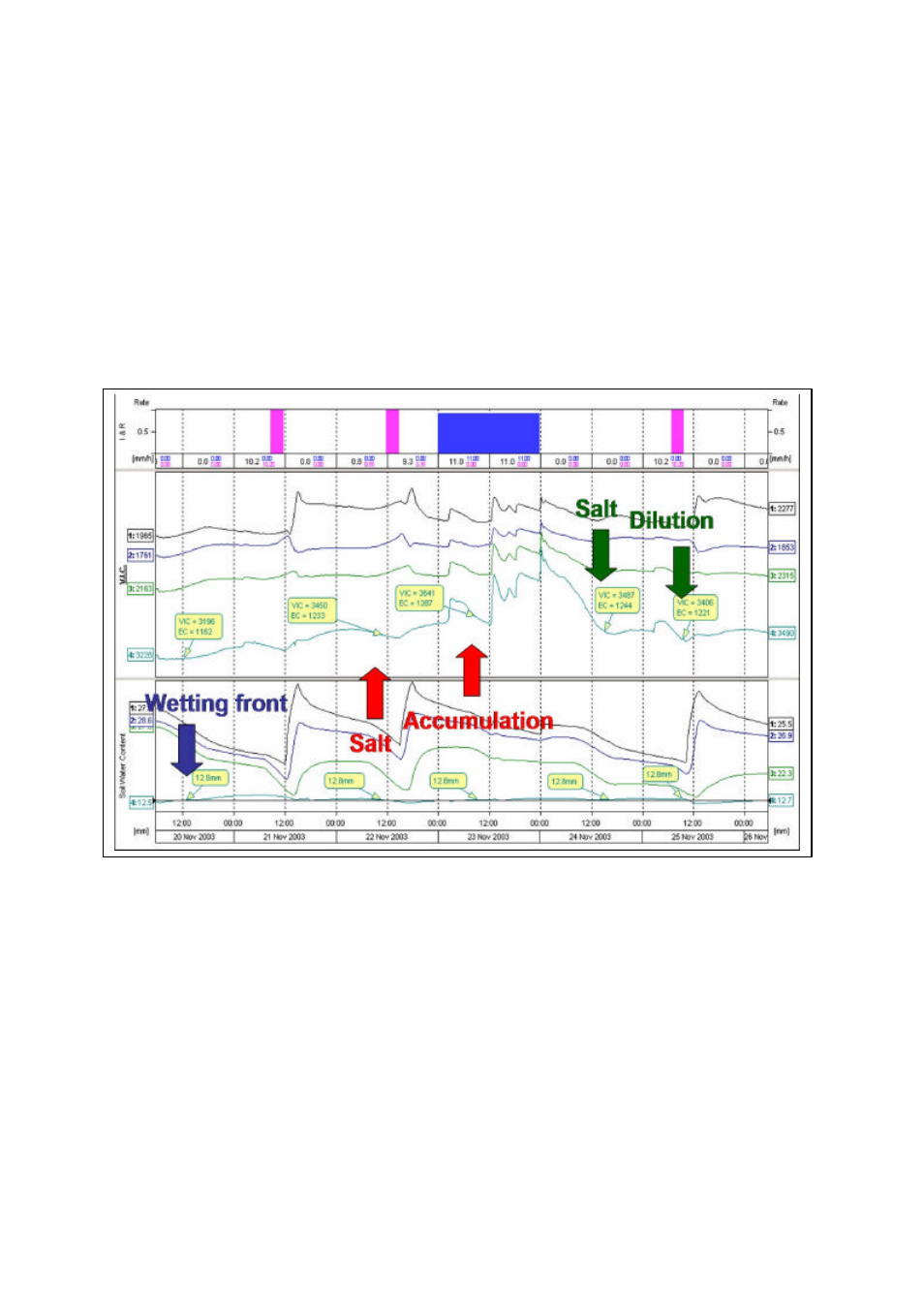

Figure 12. Tracking movement of salts
