Campbell Scientific Sentek TriSCAN® Manual v 1.2a User Manual
Page 18
TriSCAN Manual Version 1.2a
Copyright © 1991 – 2004 Sentek Pty Ltd All rights reserved
Page 11
9. Firmly plug the sensor into the connector on the probe rod, ensuring that all the pins are correctly
aligned.
10. Repeat for the other sensors.
Addressing the Sensors
After positioning and securing each sensor in its proper location, every sensor on a probe needs to be
assigned a unique address. The sensor address is set by changing the position of the address link on the
ribbon cable board of the sensor. This address is a means of differentiating between each sensor on the
probe, and can be assigned a numerical value between 1 and 16. The sensor address is not necessarily
related to the sensor position on the probe rod.

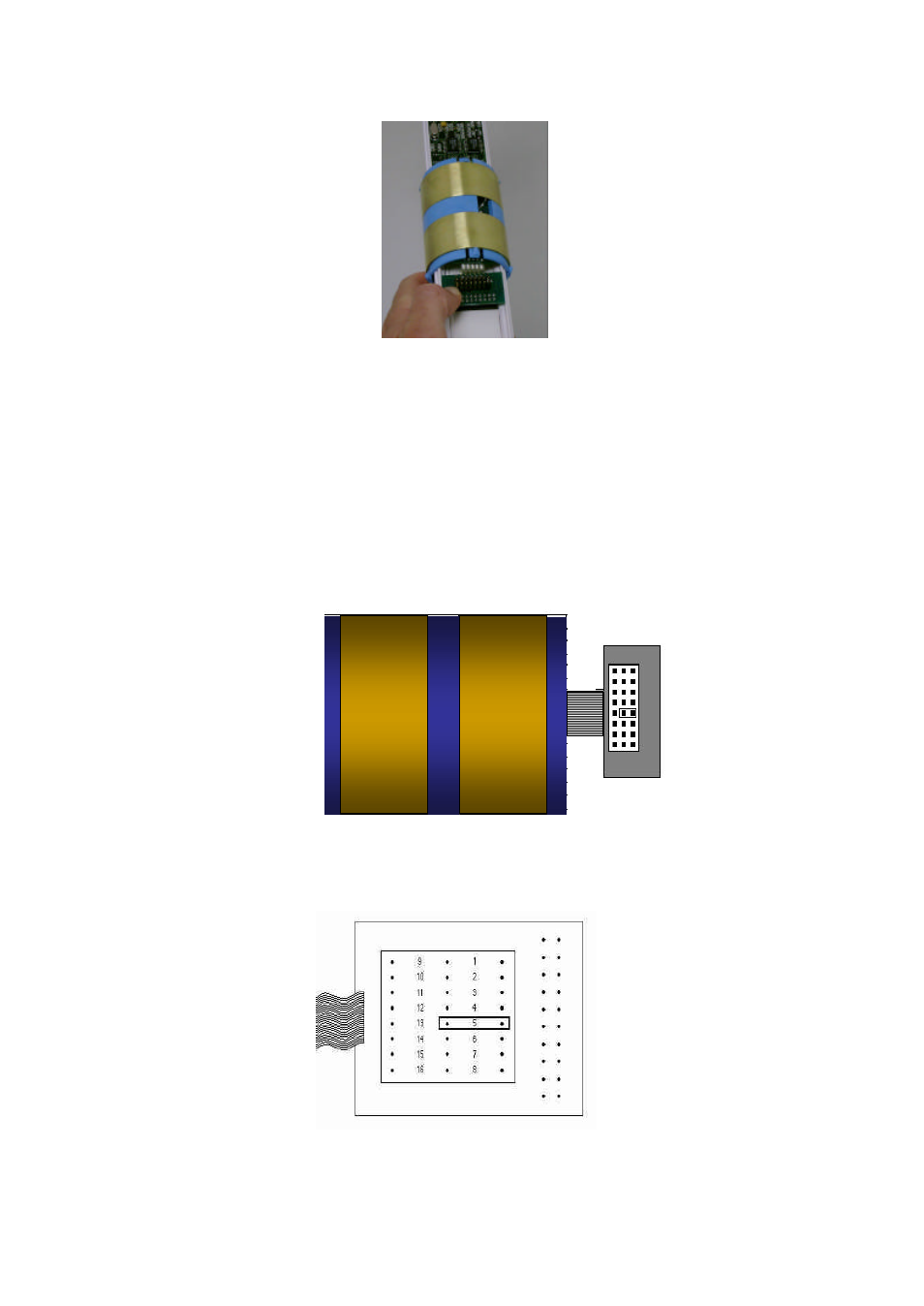

Figure 3 below shows the address link in position 5 on the sensor.
Figure 3. Example of sensor address 5
Figure 4 below outlines the sensor address link positions for all the different possible addresses.
Figure 4. Sensor addressing positions
