Same wiring), 1. connection to campbell scientific dataloggers – Campbell Scientific OBS-3+ and OBS300 Suspended Solids and Turbidity Monitors User Manual
Page 21
OBS-3+ and OBS300 Suspended Solids and Turbidity Monitors
TABLE 7-1. Connection to Campbell Scientific Dataloggers
Color
Description
CR800, CR850
CR1000, CR3000
CR5000, CR23X
CR10X
White High Range Signal Single-ended Input Single-ended Input
Blue
Low Range Signal Single-ended Input Single-ended Input
Green Signal Ground
AG
Black Power Ground
G
G
Red
Power
SW12V
SW12V
Clear Shield
G
G

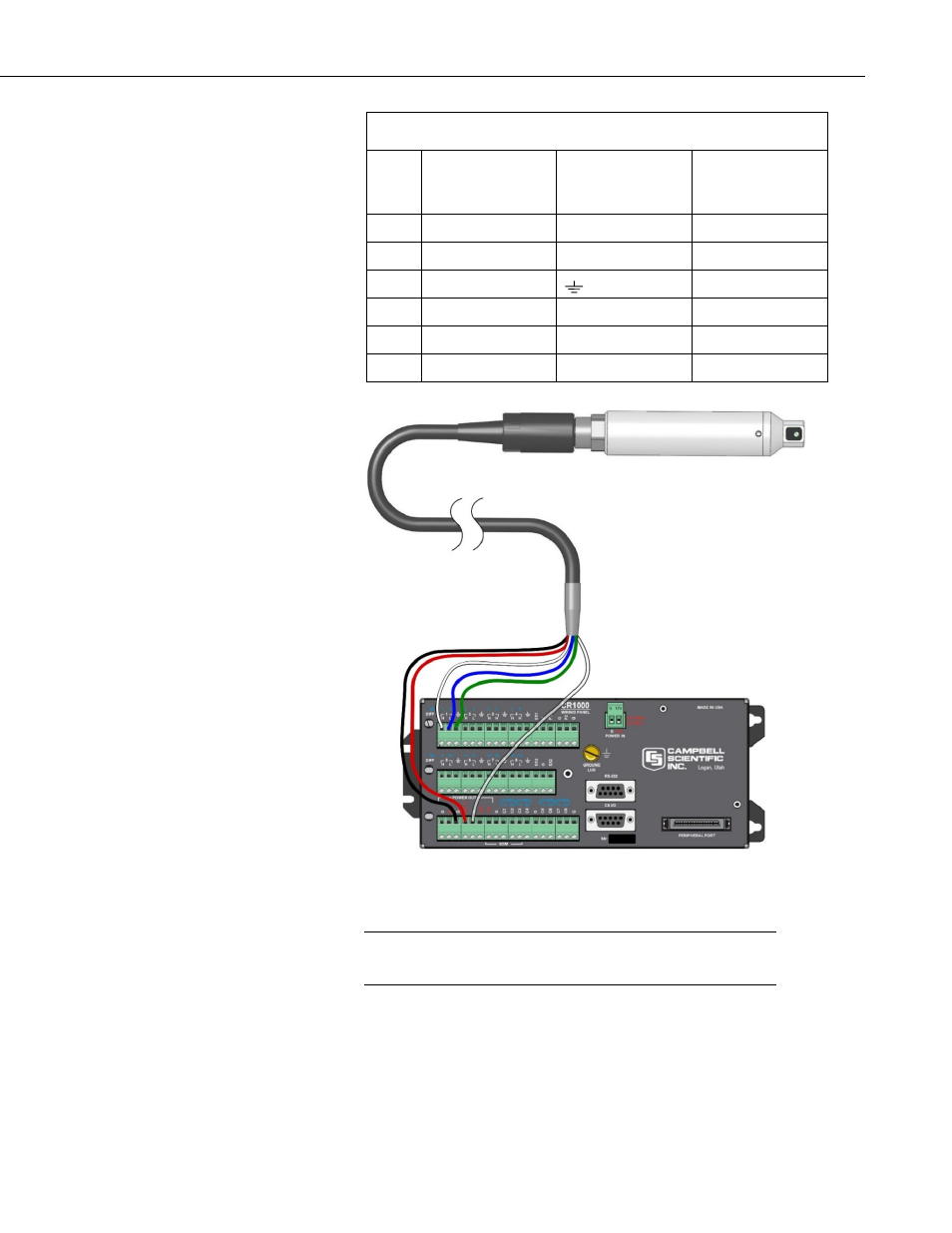

FIGURE 7-1. OBS-3+ connected to a CR1000 Datalogger (OBS300
has the same wiring)
The assignment of channel (for example, SE1, SE2) vary
depending on application.
NOTE
11
