HOT AISLE CONTAINMENT
Page 9 of 23
Installation Instructions
Containment Structure Assembly Sequence (6/9) :

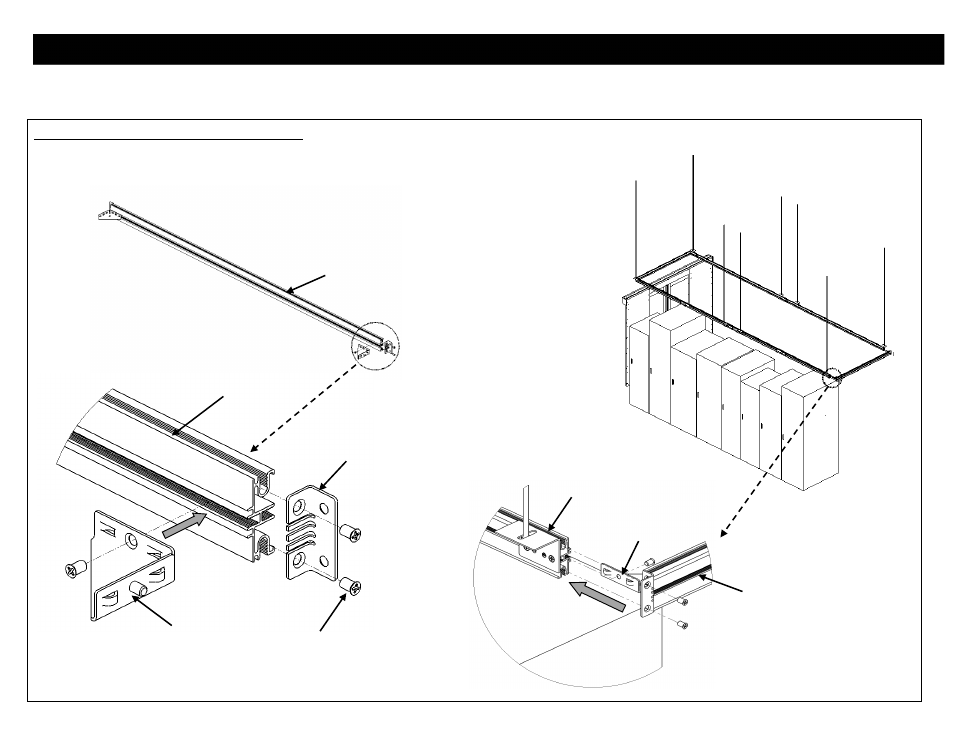

11. Pre assembled the End Width Extrusion with Dam Corner and Gusset plate
by using 3/8”-16UNC screw. (Fig. 10).
12. Install end width onto the existing length assemblies (Fig. 11).
Fig. 10
Fig. 11
3/8”-16 UNC
Dam Corner
End Width
Extrusion
Gusset, Plate
End Width
Extrusion
End Width
Extrusion
Row length
Extrusion
Gusset, Plate
