Installation Instructions
Header Panel Assembly Sequence (3/5) :

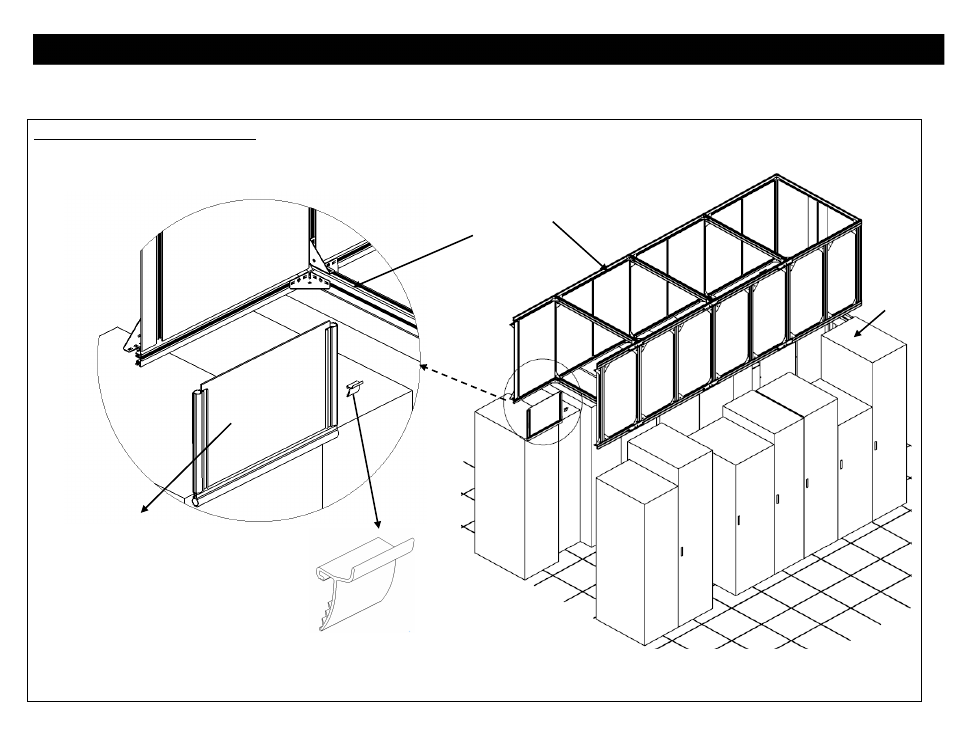

20. Install header panel into the extrusion by holding the polycarbonate clip
(Fig. 17 & 18).
Polycarbonate clips snap into
inside containment extrusion
and hold polycarbonate panel
in place
Cabinet
Containment
Structure
assembly
Header panel
assembly
Fig. 17
