Installation Instructions
Containment Structure Assembly Sequence (5/9) :

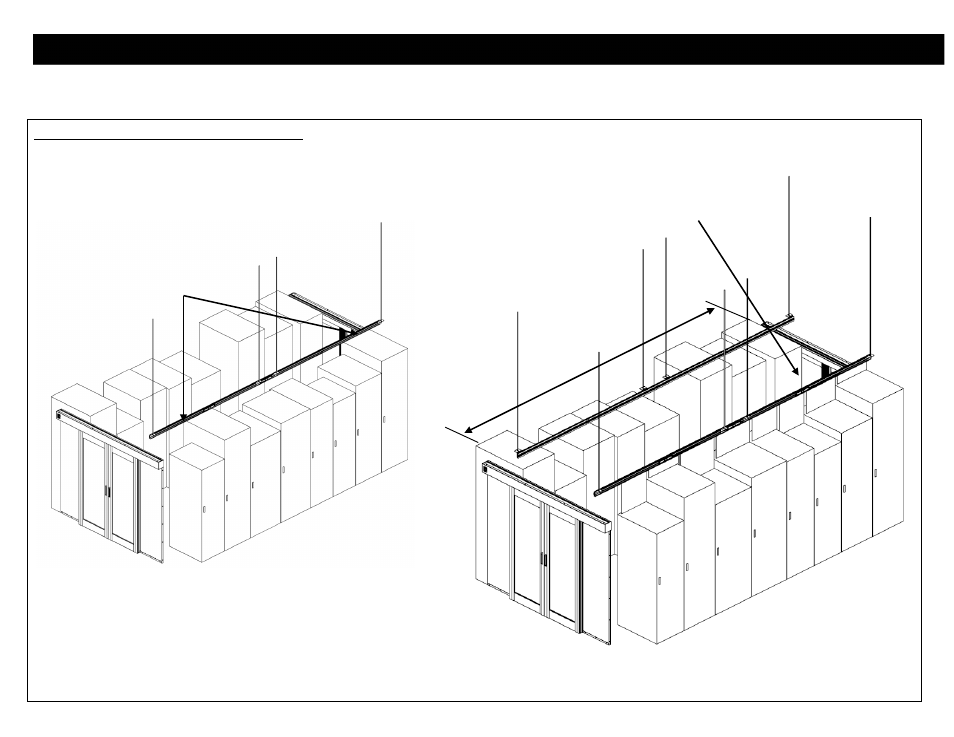

9. After Cutting the extrusion to the required cabinet row length, hang the second
length extrusion at both ends. 10. Repeat steps 5-9 for opposite side of containment row length
(Fig.9).
Fig. 9
Fig. 8
Second length
extrusion
Cabinet Row
length
Join the Second length
extrusion with Joiner.
