HOT AISLE CONTAINMENT
Page 13 of 23
Installation Instructions
Header Panel Assembly Sequence (1/5) :

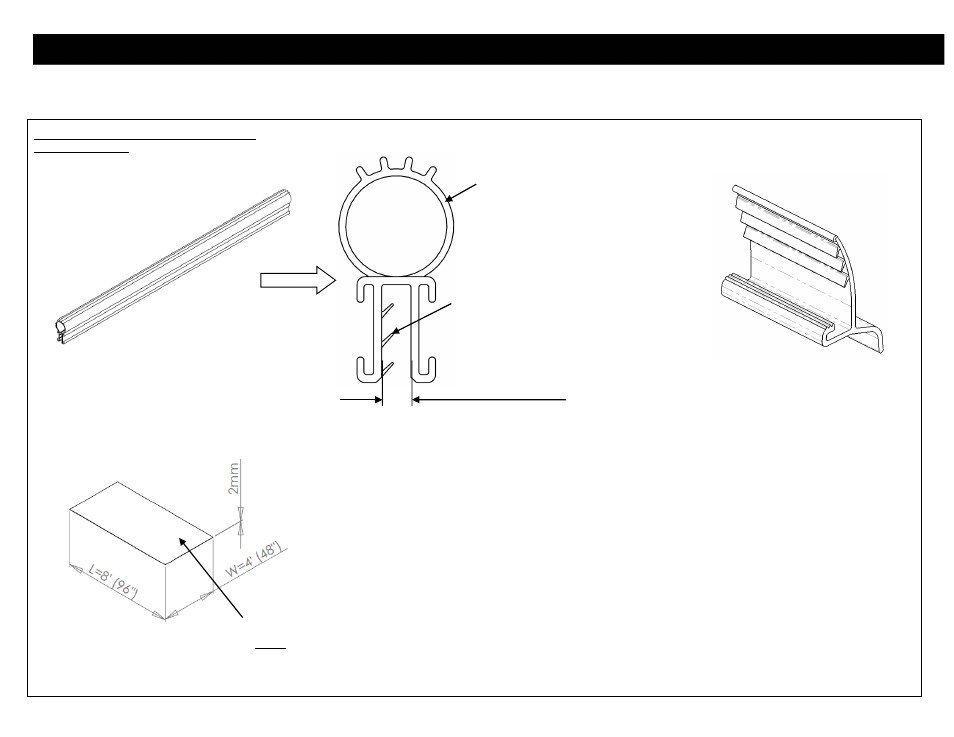

Part Identifications :
Universal
Bulb seal
96” & 102”
Cross sectional
View of Universal
Bulb seal
Flexible
PVC shore
Flexible
Alcryn
shore
Polycarbonate panels
(4’W X 8’L X 6mm D
Sheets)
Polycarbonate Clip
2” Length
Gap for Polycarbonate
panel sheet placing
Note: The pre-cut polycarbonate panels can be trimmed down/
resized easily with a razor/ straight edge as required.
