HOT AISLE CONTAINMENT
Page 12 of 23
Installation Instructions
Containment Structure Assembly Sequence (9/9) :

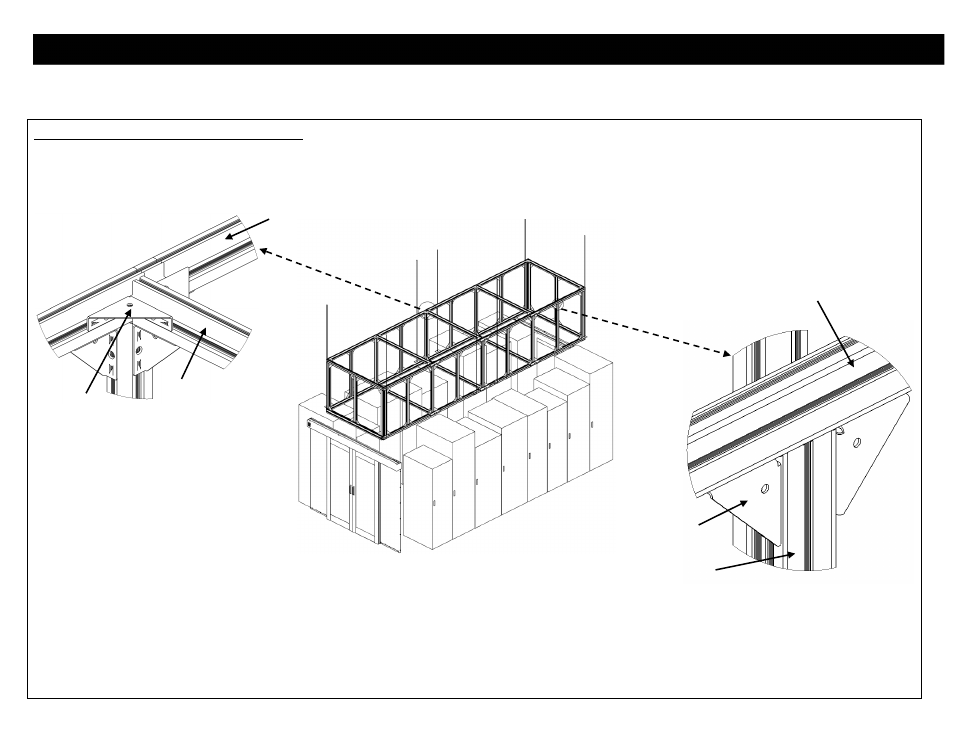

18. Continue installing the top of containment from row length extrusion, End
width extrusion with joiner and Gusset plate using 3/8”-16UNC screws (Fig. 15).
Fig. 15
Top
Containment
Row length
Extrusion
Adjacent
Extrusion Gusset
plate
Vertical
Extrusion
Gusset
plate
Top
Containment
Row length
Extrusion
