HOT AISLE CONTAINMENT

Page 6 of 23

Installation Instructions

Containment Structure Assembly Sequence (3/9) :
6. Follow either one of the step for assembling Containment Structure:

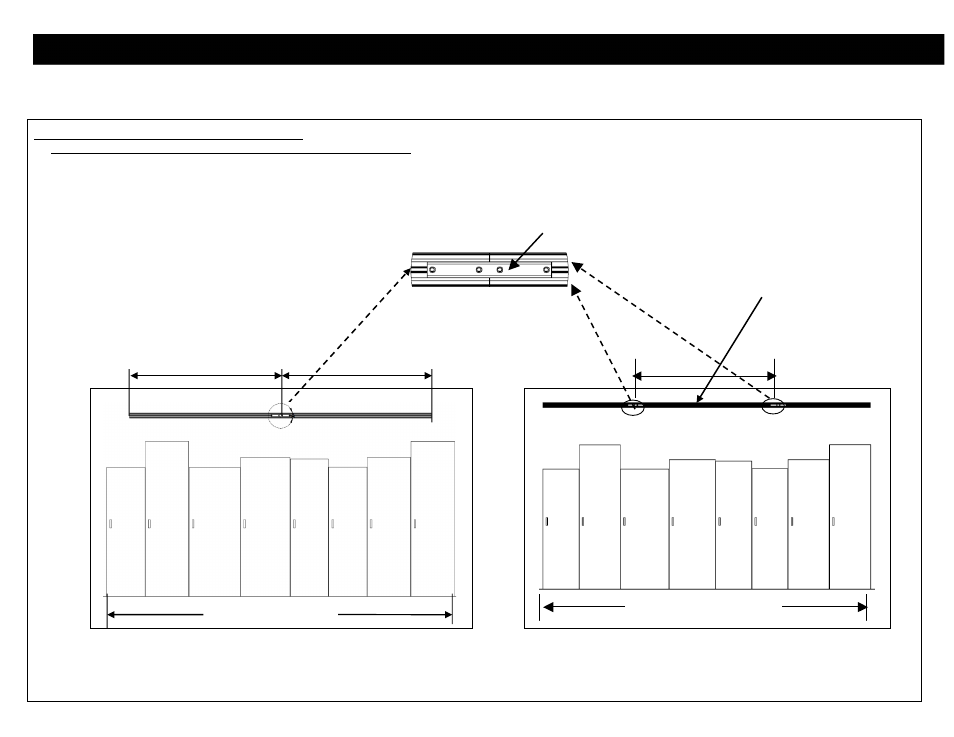

a. Position the Joiner along the length of the cabinet row (Fig. 5).
b. Position the extrusion piece approximately centers of the cabinet row

length and join the extrusion piece on both side using Joiner (Fig. 6).

Fig. 5

Make sure that extrusion is centralized

to the cabinet row length

Extrusion

L=94”

Cabinet Row Length

Cabinet

L=94”

Cabinet Row Length

Cabinet

Joiner

Fig. 6
