HOT AISLE CONTAINMENT
Page 20 of 23
Installation Instructions
Filler Panel Assembly Sequence(1/3):

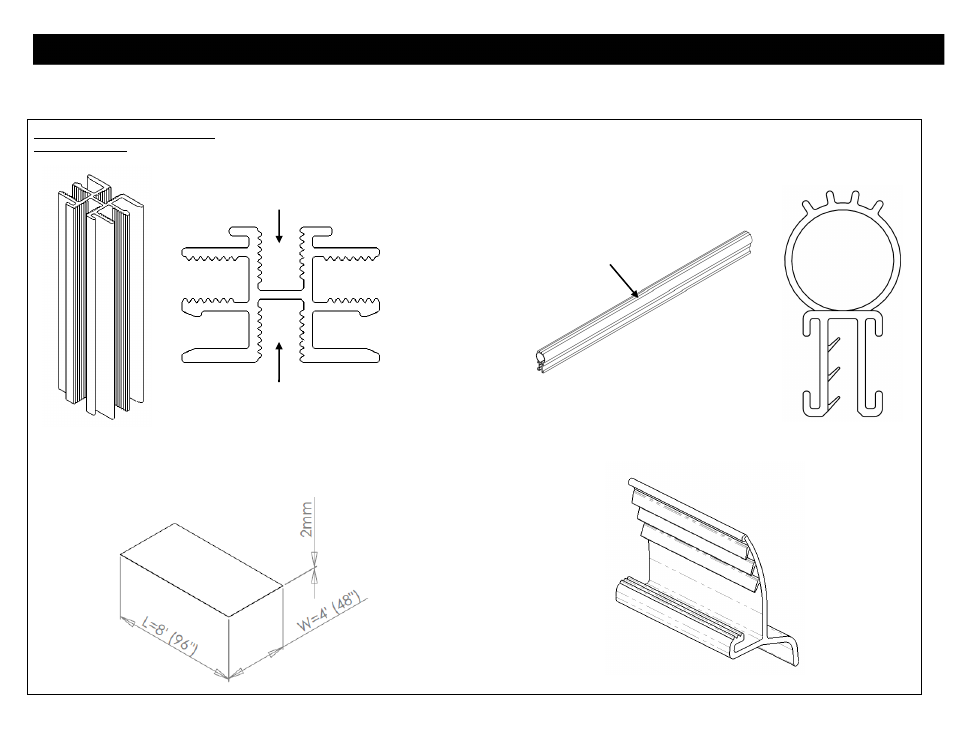

Part Identification :
Outside
Containment
Inside
Containment
Cross sectional
View of Universal
Bulb seal
Universal Bulb
seal
Polycarbonate
Clip
Polycarbonate
Panels
Filler panel full height
Extrusion (94” & 102”)
Universal Bulb Seal
(96” and 102”)
