HOT AISLE CONTAINMENT
Page 7 of 23
Installation Instructions
Containment Structure Assembly Sequence (4/9) :
7. Install the Ceiling drop down mounting to extrusion using 3/8”-16 CSK screw.
8. Hanging the First length Joiner by using 3/8” threaded rod through Ceiling drop down
mounting slot with 3/8” Nut (Fig.7),
3/8” threaded Rod
Ceiling Drop-
down mounting
Nut 3/8”-16
Screw 3/8”-16
CSK
Gusset, Joiner

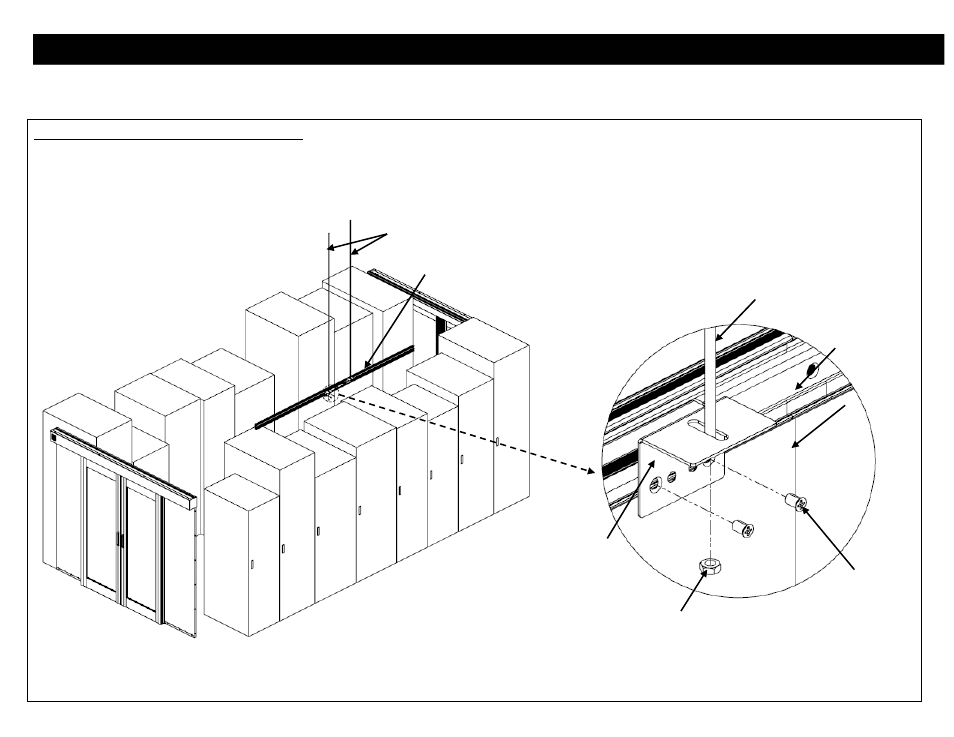

Fig. 7
3/8” threaded rod
hanged to the roof
First length
extrusion
