8 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 9
Step1: battery wiring
WARninG!
RISk of exPloSIoN oR fIRe! NeveR SHoRT CIRCuIT bATTeRy PoSITIve (+)
AND NeGATIve (-).

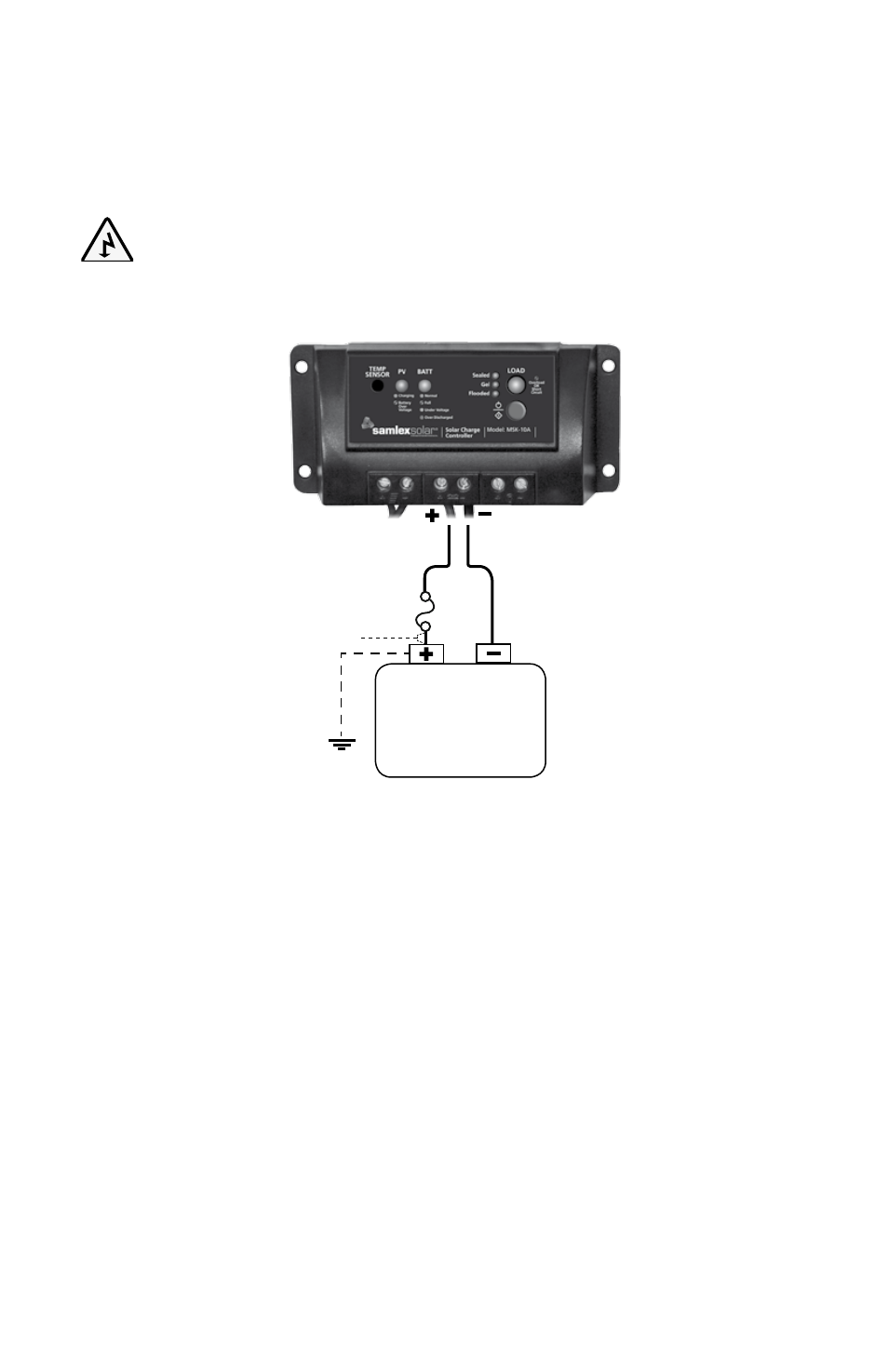

figure 3-2 battery connecting
before the battery is connected, make sure that battery voltage is greater than 6V so
as to start up the controller. If the battery system is 24V, make sure battery voltage is
not less than 18V. battery system voltage can only be sensed automatically when the
controller starts up for the first time. 15A fuse is used to protect the cable run from the
battery to the charge controller against short circuit. Install the fuse not more than
150 mm (5.9”) from the battery Positive terminal. Do not insert a fuse at this time.
Step 2: load wiring
The Load Terminals of the controller can be connected to such electrical devices as lights,
pumps, motors and others. Controller provides power to the load(s) through the battery
voltage.
When load(s) are fed from the Load Terminals, the controller will provide the following
protections:
Protect the battery as follows:
- battery low voltage (≤ 12V / 24V): output will still be available at Load Terminals
SeCtIOn 3 | Installation
battery
fuse - 15A
150 mm (5.9")
Positive
Grounding
