6 | SAMLEX AMERICA INC.
LAYoUt
Fig 2.1: LeGenD
1. teMPeRAtURe SenSoR: Senses ambient temperature for temperature compensation
for charging and discharging.
2. StAtUS LeD “PV” :
3. StAtUS LeD “BAtt”
4. StAtUS LeD “FLooDeD”: flooded type of battery has been selected
5. StAtUS LeD “GeL”: Sealed, Gel Cell type of battery has been selected.
6. StAtUS LeD “SeALeD”: Sealed, AGM type of battery has been selected.
7. StAtUS LeD “LoAD” : Displays the status of the load
8. SettinG BUtton:
- Switch oN and Switch off the load connected to the Load Terminals.
- Select battery type
9. Terminals for connecting PV Panel(s)
10. Terminals for connecting battery
11. Terminals for connecting load(s) - Maximum 10A
SeCtIOn 2 | General Information, Features
& layout
1 2 3 4 5 6
7
8
9 10 11

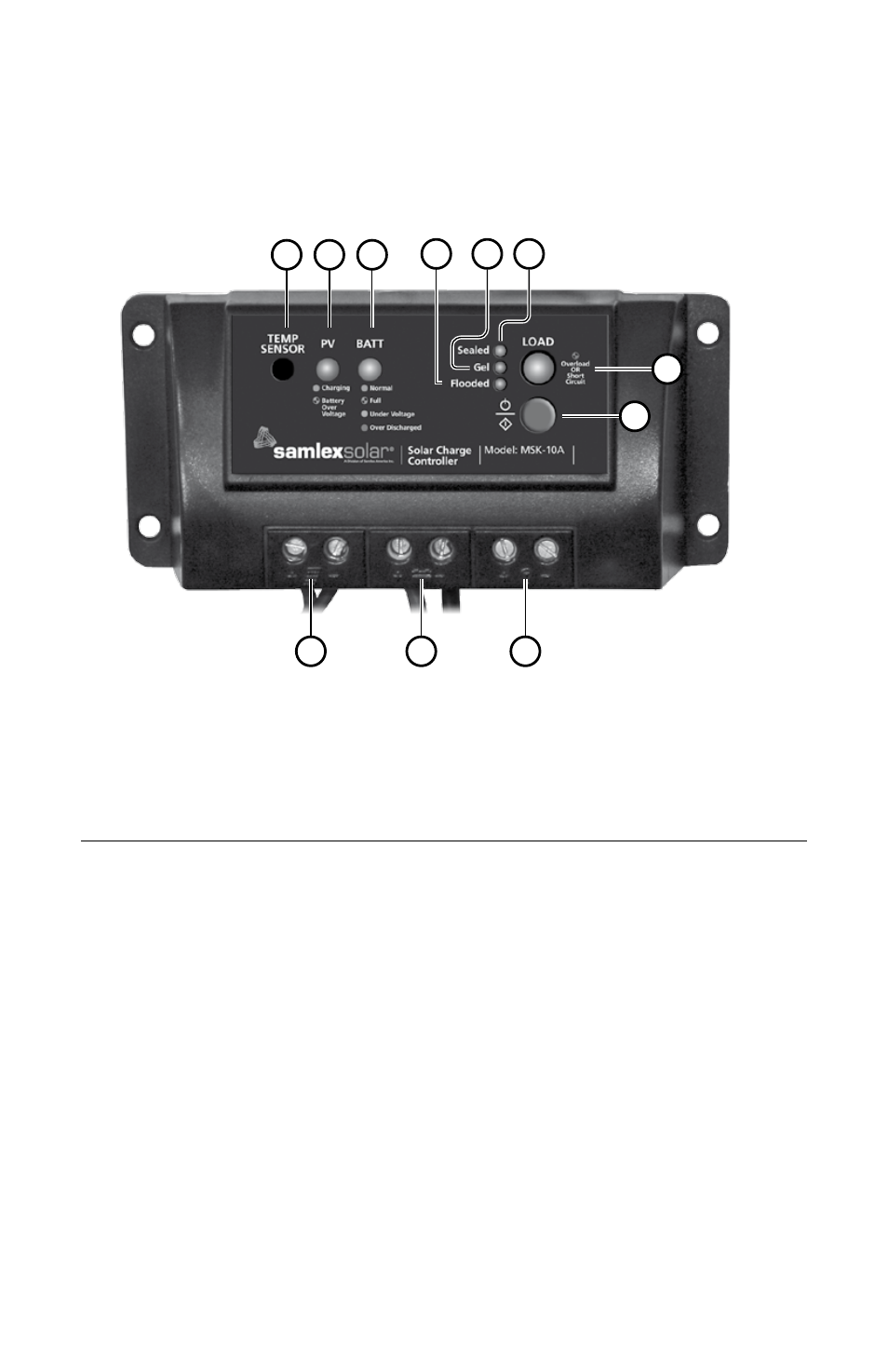

fig 2.1: MSK-10A Layout
