Please note that in some applications like in Portable Solar Charging Kits, solar panel(s)
will be permanently connected to the input terminals of the Charge Controller and the
battery will be connected whenever the Portable Charging Kit is required to be used.
In these applications, the modules will start generating power as soon as these are ex-
posed to sunlight. However, there will be no power output from the Charge Controller
until the controller is connected to the battery. The following spurious LeD indications
may be seen at the Charge Controller and may be disregarded:
Module(s) are exposed to Sunlight and battery has not been connected
• No LED indication
Module(s) are exposed to Sunlight, battery is Connected and then removed.
• “PV” LED: Steady Green
• “BATT” LED: Steady Green with Red flickering
SettinG BAtteRY tYPe AnD LoAD on/oFF contRoL

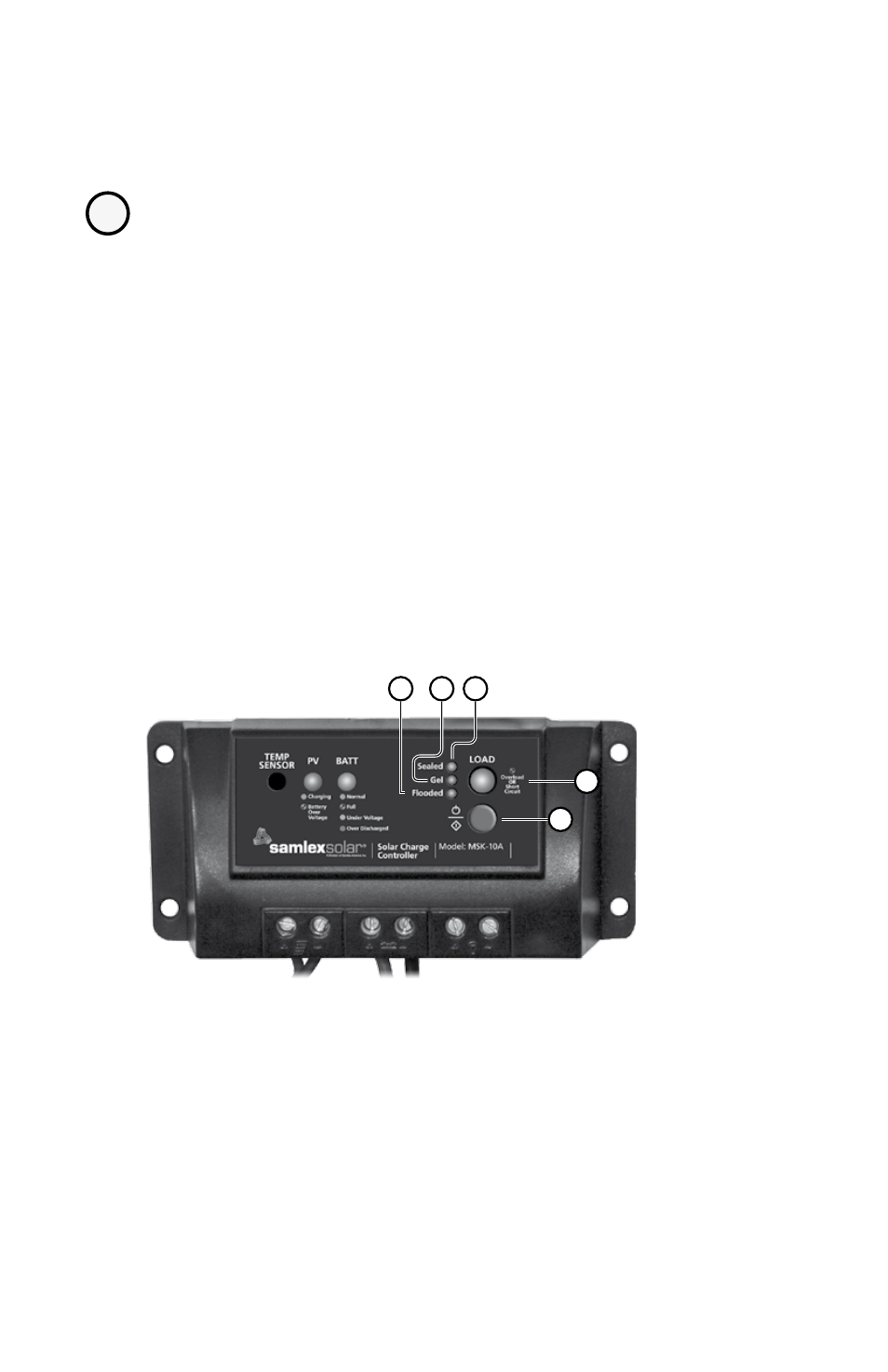

figure 4-3 Setting battery Type and Load oN / off Control
Controlling oN / off operation of load Terminals
When the controller is powered oN, press the Setting button (8) to toggle the load
oN and off. When load is oN, Load Status LeD (7) will turn oN - reD.
battery Type Setting
Press the Setting button (8) for more than 5 seconds, the original battery type
indicator will be flashing. Then press the setting button to choose Sealed, Gel, and
flooded battery type. The setting finishes when flashing stops.
SeCtIOn 4 | Operation
4 5 6
7
8
