Samlex America MSK-10A User Manual
Page 11
10 | SAMLEX AMERICA INC.
SAMLEX AMERICA INC. | 11
The controller can accept 12V (36 cell) or 24V nominal (72 cell) PV panel(s) with maxi-
mum open Circuit Voltage Voc of up to 50V.

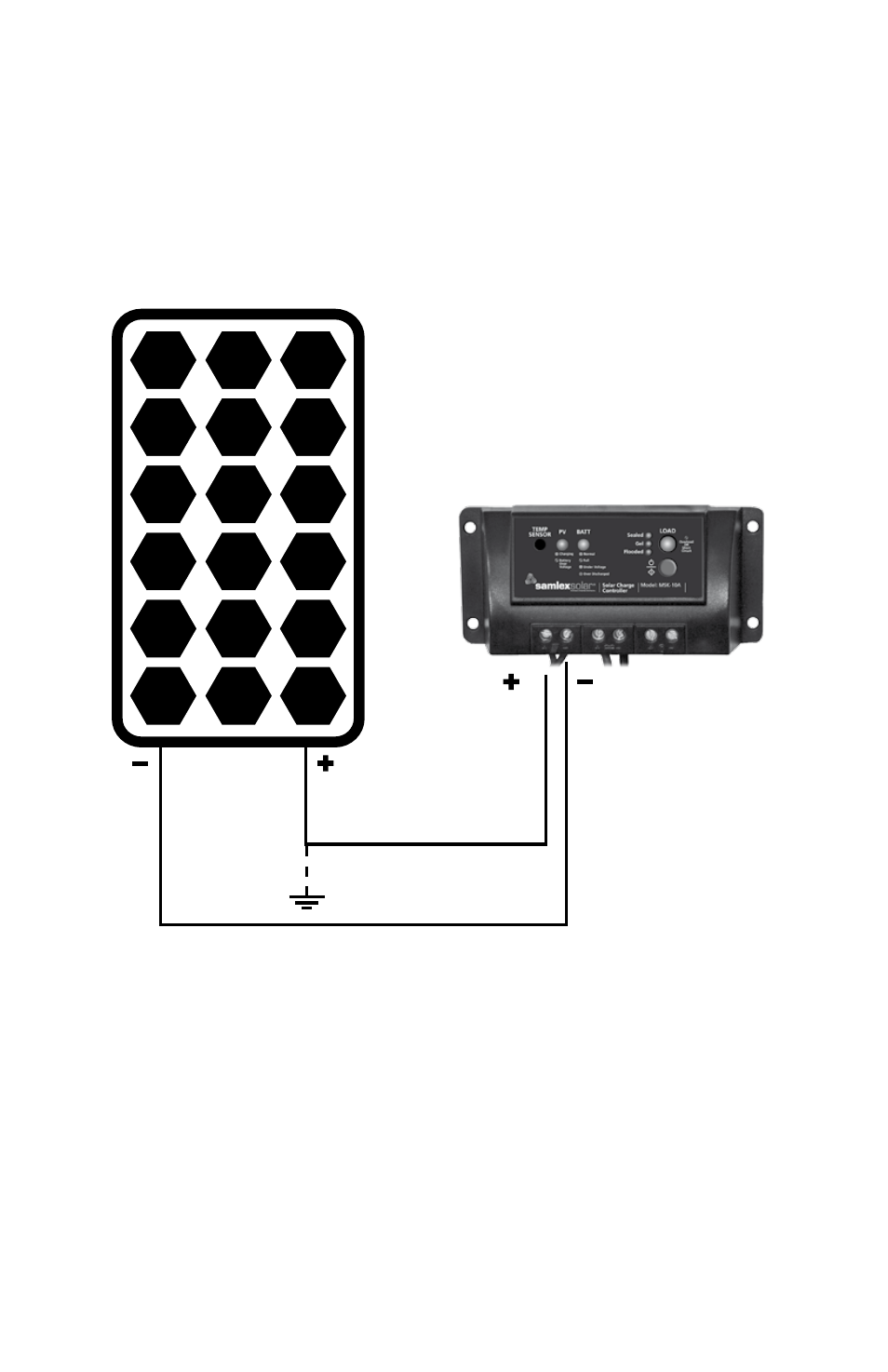

figure 3-4 Solar wiring
Step 4: Confirm wiring
Double-check the wiring in step1 through 3 as shown in fig 3.5. Confirm correct polarity
at each connection. Verify that all six terminals on the controller are tightened firmly.
SeCtIOn 3 |
Installation
Solar Panel
Positive
Grounding
