18 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 19
tive period of 2 Hours. If equalization Transition Voltage Set Point “Ve” cannot
be maintained continuously / cumulatively for 2 Hr, transition to float Stage will NoT
take place.
STATUS LeD “bATT” is steady Green during this stage
NoTe: During equalization Stage, if the load current is more than the current from the
Pv Panel(s), the battery voltage will drop. If the battery voltage drops to 13.2v for 12v
battery and 26.4v for 24v battery, the controller reverts to Stage 1: bulk Stage. Pwm
DuTy Cycle is changed to 100% and STATuS leD “bATT” changes to steady Green
thereafter.
Stage 3 - float stage
The controller enters this stage from the previous equalization Stage after the battery
voltage is held at the selected equalization Transition Voltage Set Point “Ve” for con-
tinuous or cumulative period of 2 Hours.
This stage is the same as the float Stage in the Normal Charging Cycle
LeD inDicAtionS

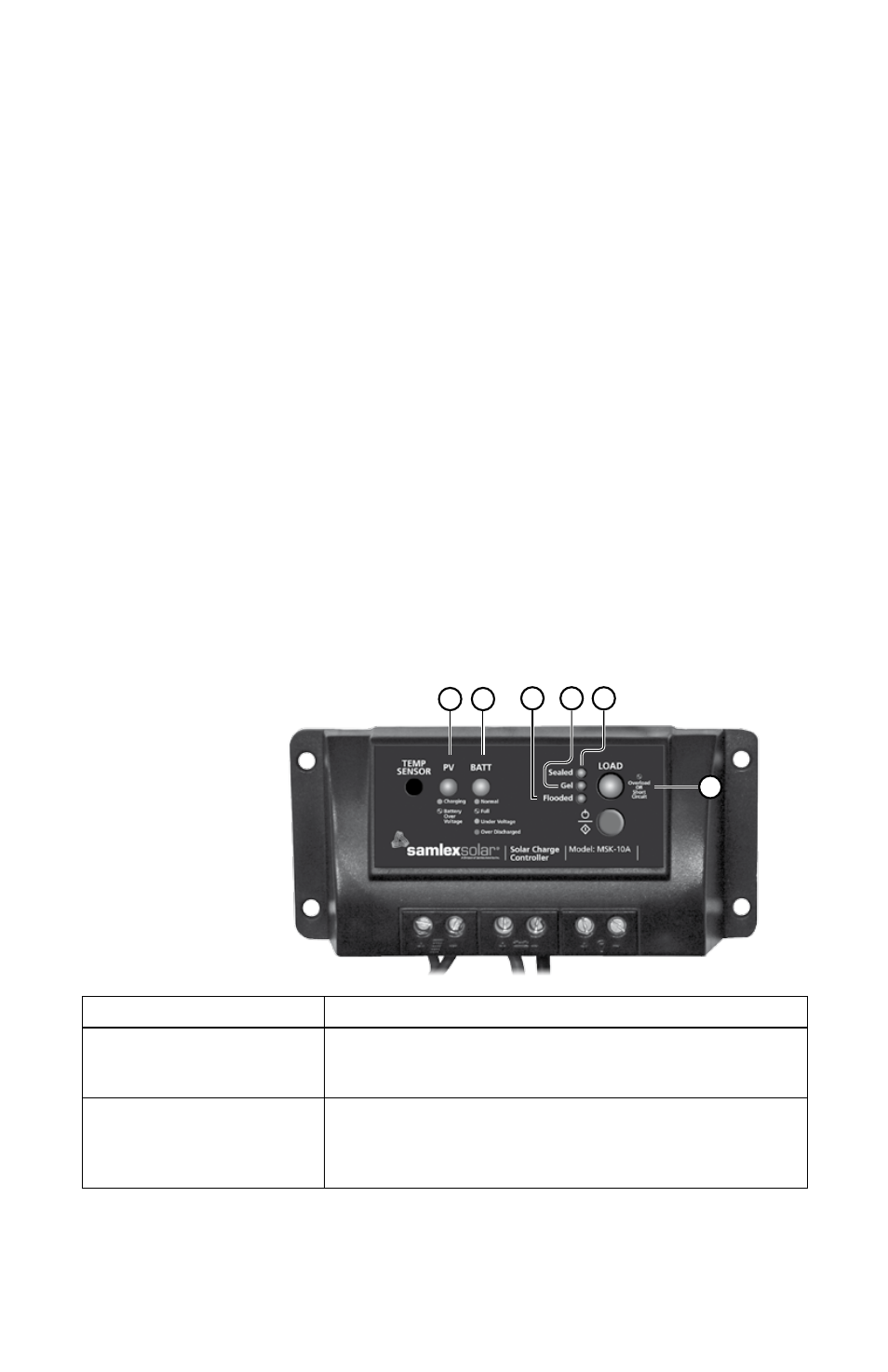

fig 4.2 LeD Indications
2. STATUS LeD “PV”
LeD coLoR & PAtteRn StAtUS
Green - Steady “cHARGinG”: energy from PV Panel(s) is available at the PV
Panel(s) input terminals and voltage > 6V is also available
simultaneously at the battery terminals.
Green - fast flashing “BAtteRY oVeR VoLtAGe”
- over Voltage Disconnect protection has been activated due to
high voltage of ≥ 16V / 32V at the battery output terminals
- PV Panel(s) and Load have been disconnected
3. STATUS LeD “bATT”
SeCtIOn 4 | Operation
2 3 4 5 6
7
