10 | SAMLEX AMERICA INC.
SeCtIOn 3 | Installation
- battery over discharged (≤ 11.1V / 22.2V): output to Load Terminals will
be disconnected
Protect the load as follows:
- overload or short circuit in the load connected to the Load Terminals: output
to Load Terminals will be disconnected

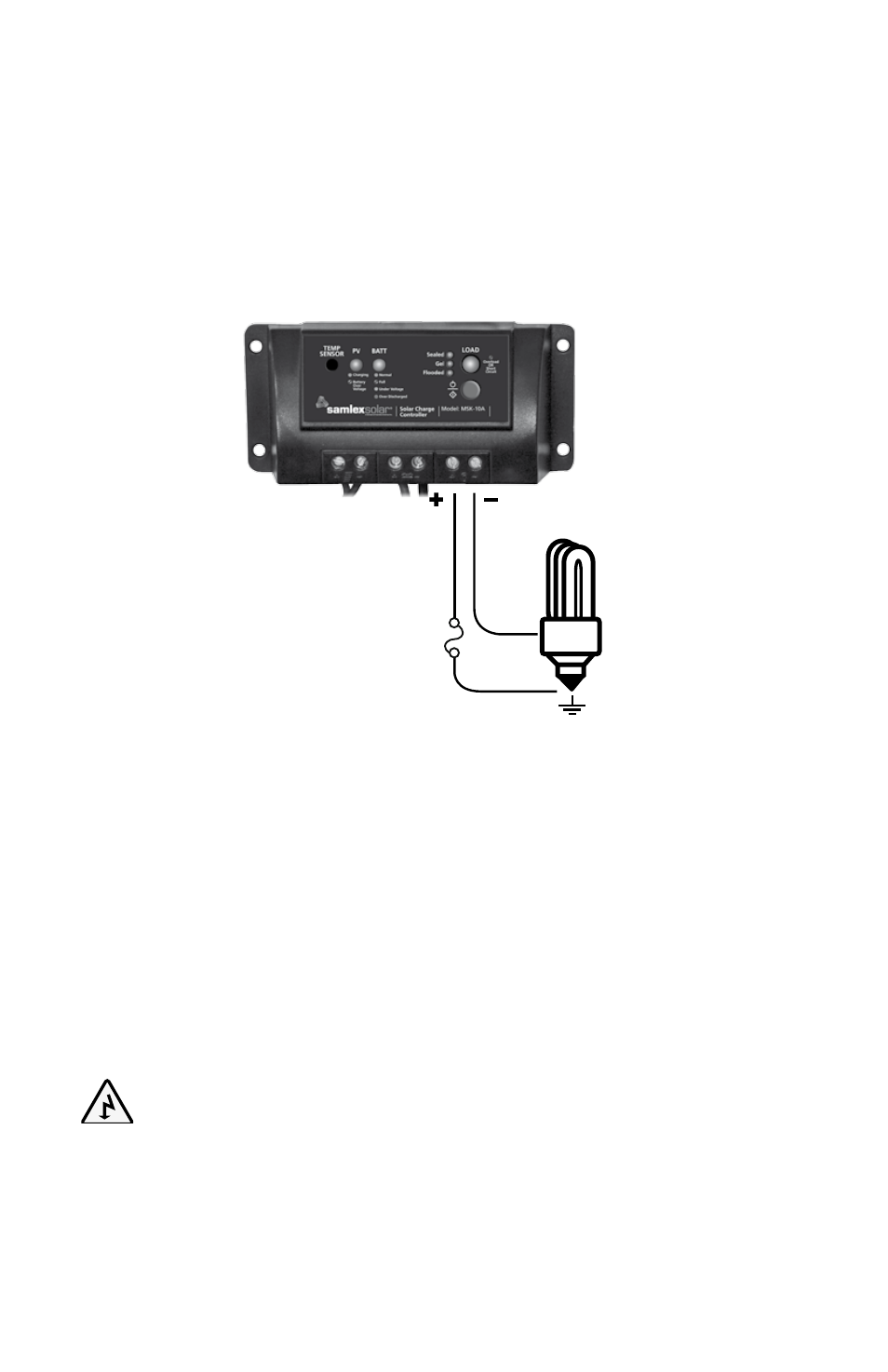

figure 3-3 Load wiring
Connect the Positive (+) and Negative (-) of load(s) to controller Load Terminals as
shown in figure 3-3.
An in-line fuse should be wired in series in the load Positive (+) or Negative (-) wire as
show in figure 3-3. Do not insert a fuse at this time.
If the Load Terminals of the controller are fed to a distribution panel for further
distribution to the loads, each load circuit should be fused separately. ensure that the
maximum total running / start up current draw of the load(s) is less than 10A.
Step 3: Solar wiring
WARninG!
RiSk oF eLectRic SHock! exeRciSe cAUtion WHen HAnDLinG SoLAR
wIRING. THe Pv PANel(S) HIGH volTAGe ouTPuT CAN CAuSe SeveRe SHoCk
oR INjuRy. CoveR THe Pv PANel(S)(S) fRom THe SuN befoRe INSTAllING
SoLAR WiRinG.
fuse - 10A Load(s)
