Page 26

EN - English - I

nstruc

tions manual

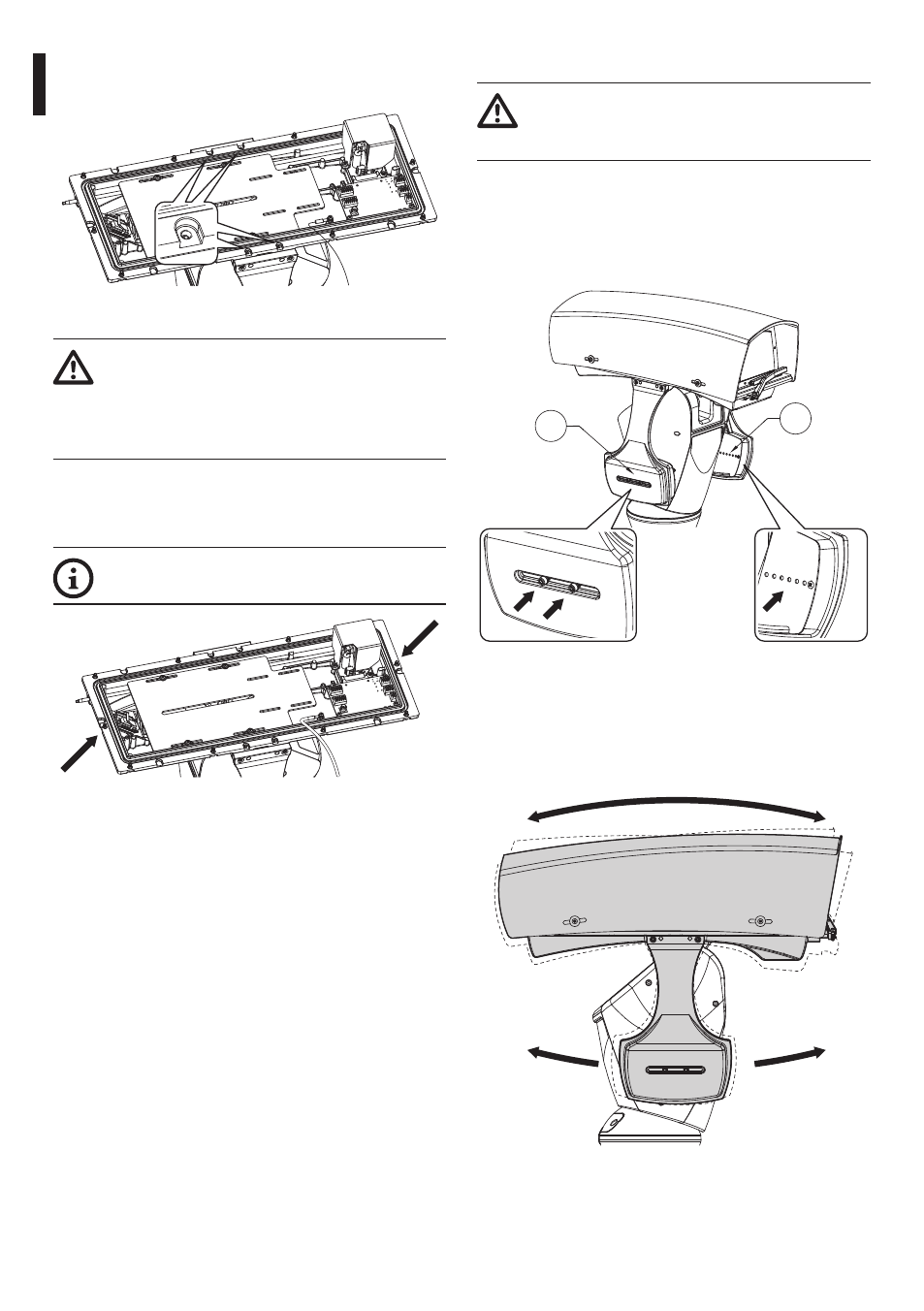

Fasten the safety grub screws of the counterweights’
pins.

Fig. 41

For correct operation and for safety
reasons, we recommend that you carefully
check the proper tightening of screws
and grub screws for the fastening of
counterweights.

7.2.2 Closing the housing

Close the housing following the opposite procedure (
7.1.2.1 How to open the housing, page 14).

First of all tighten the two central screws as
shown in figure.

Fig. 42

7.2.1 Counterweights adjustment

For the correct operation of the pan & tilt
function, the counterweights have to be
adjusted.

Loosen the weight’s locking screws (01). Move
the weights to the desired position. This must
be the same for both weights, to help with this,
use the reference holes (02) at the back of the
counterweights.

Fig. 43

For the pan & tilt’s correct operaration the housing
must remain balanced, possibly in the horizontal
position. For this purpose, check by lightly swinging
the housing.

Fig. 44

Tighten the screws.
