ASSEMBLY INSTRUCTIONS FOR
Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN. Holtkötter ® and Holtkötter Leuchten ® are registered trademarks of Holtkötter. All Rights Reserved.
© Holtkötter

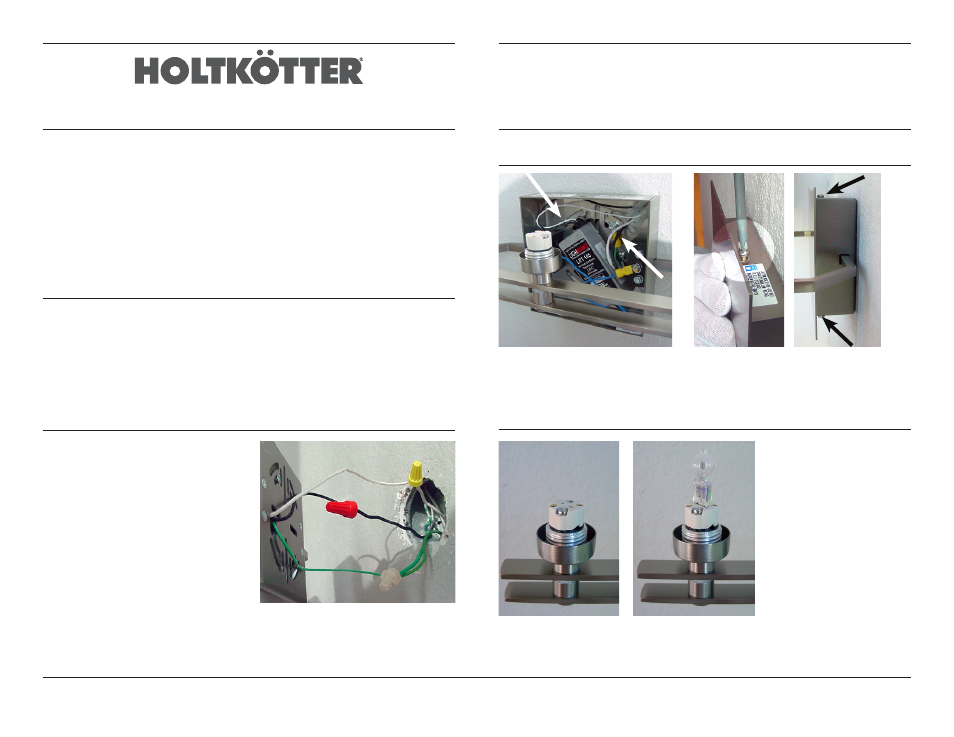

General Installation Instructions, continued
Bulb Installation Instructions
1. Install the new bulb being
careful not to touch the
bulb envelope with your
bare hands.
2. Hold the bulb using the
packaging material or
tissue and push it straight
into the socket. Remove
protective material.
1. Mount the fixture to the outlet box.
(Mounting screws are not provided.)
2. Mount the cover plate of the sconce
to the fixture and secure with finished
screws.
view from above
Holtkoetter Bath: Ludwig Series
No. 5583 & No. 5584
Please make sure that the following parts for your wall sconce are enclosed:
1. Backplate assembly
2. Reflector Kit including the glass reflector
3. 35 Watt Halopin IRC bulbs by Osram (5583/3 - 3 ea.; 5584/4 - 4 ea.; 5585/5 - 5 ea.)
4. Plastic wrench (Montageschlüssel)
5. If a wall dimmer is required, it is recommended that a Lutron ELV (Electronic Low Voltage)
dimmer be used.
Care Instructions
Use only a soft, dry cloth to clean. If necessary, a slightly damp, soft cloth can be used to spot
clean. Do not use common household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result. Enjoy your new Holtkötter lamp.
IT IS FIRMLY RECOMMENDED THAT A LICENSED ELECTRICIAN INSTALL THIS
FIXTURE.
General Installation Instructions
1. Disconnect power to outlet box before
installation.
2. Remove the cover plate from the front of
the sconce (the sconce bracket itself is the
universal crossbar strap).
3. Connect the wires from the sconce with
the wires in the outlet box according to
generally accepted electrical standards.
