Holtkoetter 6505 User Manual

Assembly instructions for

205 Hardman Avenue South, South Saint Paul, MN 55075

Voice: (800) 899-5444 • Fax: (888) 552-8661

www.holtkoetter.com

ASSEMBLY INSTRUCTIONS FOR

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN.

Holtkötter

and Holtkötter Leuchten

© Holtkötter

Please make sure that the following parts for your lamp are enclosed:
1. Lamp Base
2. Reflector Kit

A. Metal reflector (6505/1) or Glass reflector (6515/1)
B. Frosted glass shield
C. Bayonet base halogen bulb made by Osram in Germany (100 Watts)

Install the Bulb and Reflector

1. Insert the bulb into the bayonet socket. The bulb is inserted by pushing it slightly down into

the socket and then turning it clockwise. NOTE: BE CAREFUL NOT TO TOUCH THE BULB WITH
YOUR BARE HANDS.

2. Set the glass shield (B) on the grooved counterpart of the reflector (A).
3. Screw the reflector onto the base. Holding the reflector with one hand and the glass shield

with the other hand, place the reflector and glass shield over the bulb and onto the base.
Turn the reflector clockwise until it is completely assembled.

4. Plug lamp into your outlet. Turn the entire stem of the lamp to turn on and off. The lamp is

now operational.

UL requires the following safety instructions:

Lighted lamp is HOT! WARNING: Improper use of this fixture may increase the risk of FIRE,
ELECTRICAL SHOCK, EXPOSURE TO EXCESSIVE RADIATION or INJURY TO PERSONS.

IN ORDER TO REDUCE THESE RISKS, PLEASE FOLLOW THESE SAFETY INSTRUCTIONS:
1. Before replacing bulb, UNPLUG lamp and allow bulb to cool.
2. DO NOT touch hot glass shield or operate lamp with a missing glass shield.
3. Keep lamp away from materials that may burn.
4. Do not remain in light if skin feels warm or look directly at a lighted bulb.
5. Use of the Osram bulb provided with this lamp prevents exposure to excessive UV Radiation.

Use of any other bulb may cause a risk of exposure to excessive UV Radiation. Use of any
other bulb may also cause a risk of overheating or may rupture the bulb.

Care Instructions

Use only a soft, dry cloth to clean. If necessary, a slightly damp, soft cloth can be used to spot
clean. Do not use common household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result. Enjoy your new Holtkötter lamp.

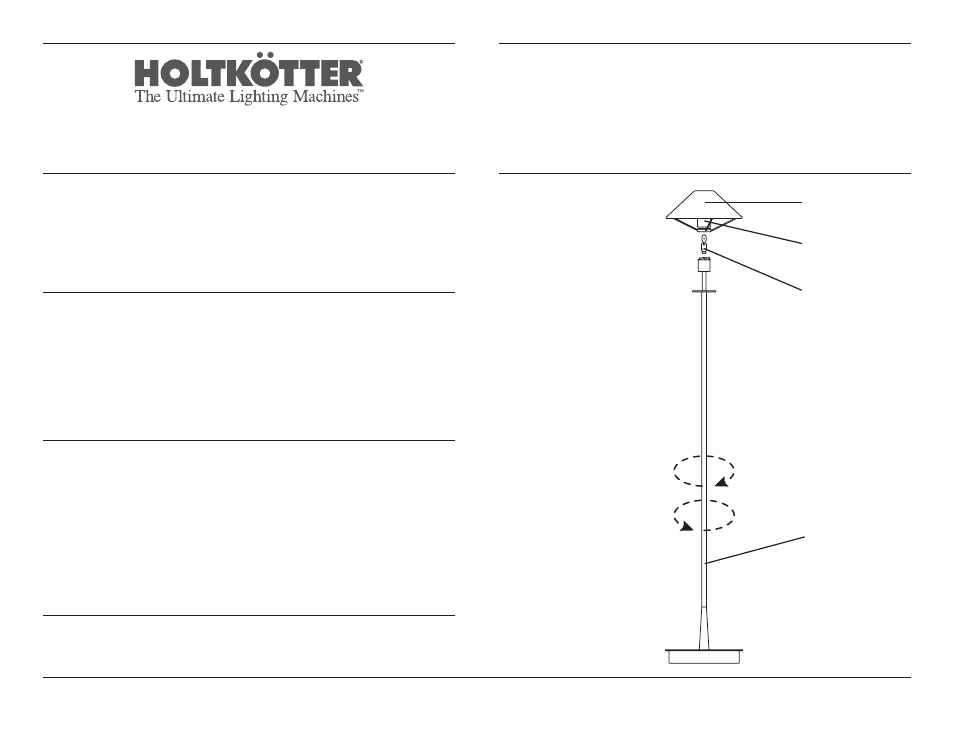

Lamp Base

(A) Reflector

(B) Frosted Glass Shield

to turn lamp on / off

turn the entire stem of lamp

Halgoen Floor Lamp

No. 6505 & No. 6515

This manual is related to the following products:

6515
