ASSEMBLY INSTRUCTIONS FOR
Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN. Holtkötter ® and Holtkötter Leuchten ® are registered trademarks of Holtkötter. All Rights Reserved.
© Holtkötter
Low-voltage Pendant
No. 5701
Care Instructions
Use only a soft, dry cloth to clean. If necessary, a slightly damp, soft cloth can be used to spot
clean. Do not use common household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result. Enjoy your new Holtkötter lamp.

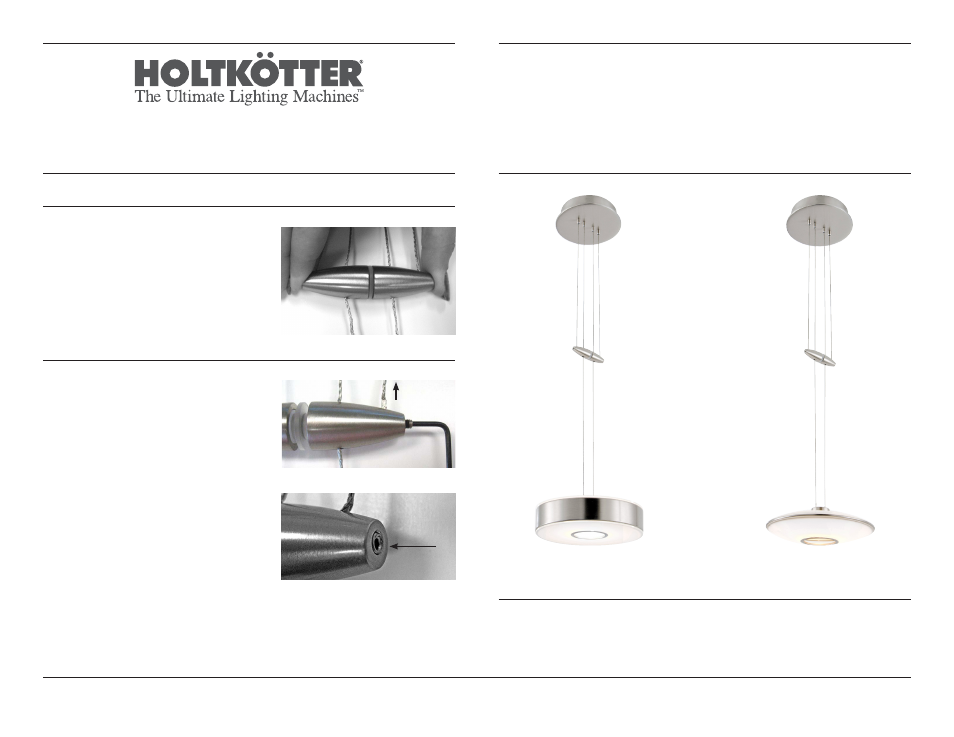

5701/1 B10 5701/1 B20
HEIGHT ADJUSTMENT (Diagram A)
The height of this fixture can be adjusted at any time.
1. Hold the weight of the glass off the cables.
2. Squeeze the center adjustment bar together to
release the cables. See Diagram A.
3. Adjust the height.
4. Release the center adjustment bar when the
height is acceptable.
CABLE LENGTH ADJUSTMENT (Diagram B & Diagram C)
1. Be sure to support or remove the glass reflector
prior to shortening the cables.
2. Using the allen wrench provided in the packet
with the bulb and wire crimps, loosen each side
of the counter-weight to release the cable from
the fixture. See Diagram B.
3. Cut the cable to the correct length on each
side.
4. Slide the wire crimps over the cut end of the
cable and crimp to secure. If the wire crimp
is too long to fit completely into the counter-
weight, cut off a small amount and re-fit.
5. Insert the cable back into the counter-weight
and tighten the set screws with the allen wrench.
The set screw should tighten flush to the fixture.
See Diagram C.
Diagram A
Diagram C
Diagram B
