ASSEMBLY INSTRUCTIONS FOR

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN.

Holtkötter

and Holtkötter Leuchten

© Holtkötter

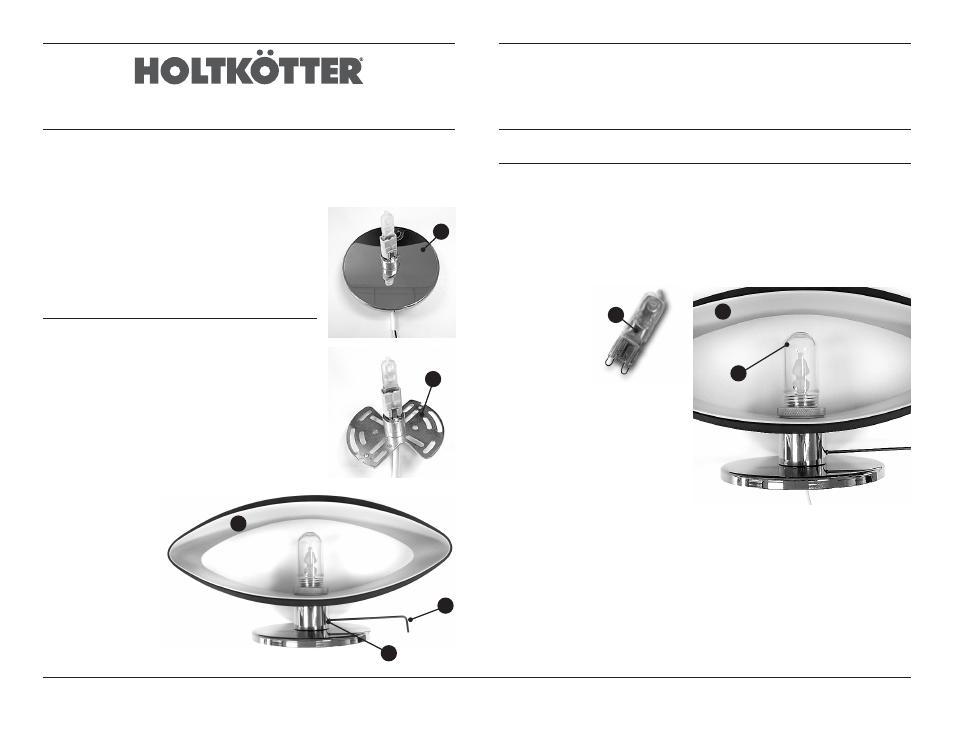

Please make sure that the following parts are enclosed:

A. 60 Watt frosted Halopin Bulb
B. Glass Shield (attached to fixture)
C. Allen wrench
D. Wall Sconce

IT IS FIRMLY RECOMMENDED THAT A LICENSED
ELECTRICIAN INSTALL THIS FIXTURE. DISCONNECT
POWER BEFORE SERVICING.

General Installation Instructions

1. Remove the universal crossbar strap/socket assembly (G)

from the back of the sconce by loosening the set screw (E)
with the allen wrench (C) provided. This allows the crossbar
strap/socket assembly and bulb to be separated from the
finished backplate (F) and wall sconce (D).

2. Mount the universal crossbar strap (G) to the outlet box

before making the wire connections.

3. Connect the wires from the sconce with the wires in the

outlet box according to generally accepted electrical
standards.

4. Put the finished backplate (F) onto the socket, followed by

the fixture (D).

5. Making sure the fixture

is level, tighten the set
screw (E) with the allen
wrench (C).

Halogen Wall Sconce

No. 8502

Install or Replace Bulb

1. Disconnect power to the wall sconce.

2. Unscrew the glass shield (B).

3. Insert the Halopin bulb (A) by pushing it gently down into the socket.

NOTE: BE CAREFUL NOT TO TOUCH THE BULB WITH YOUR BARE HANDS.

4. Reinstall the glass shield.
