Chapter 1 9

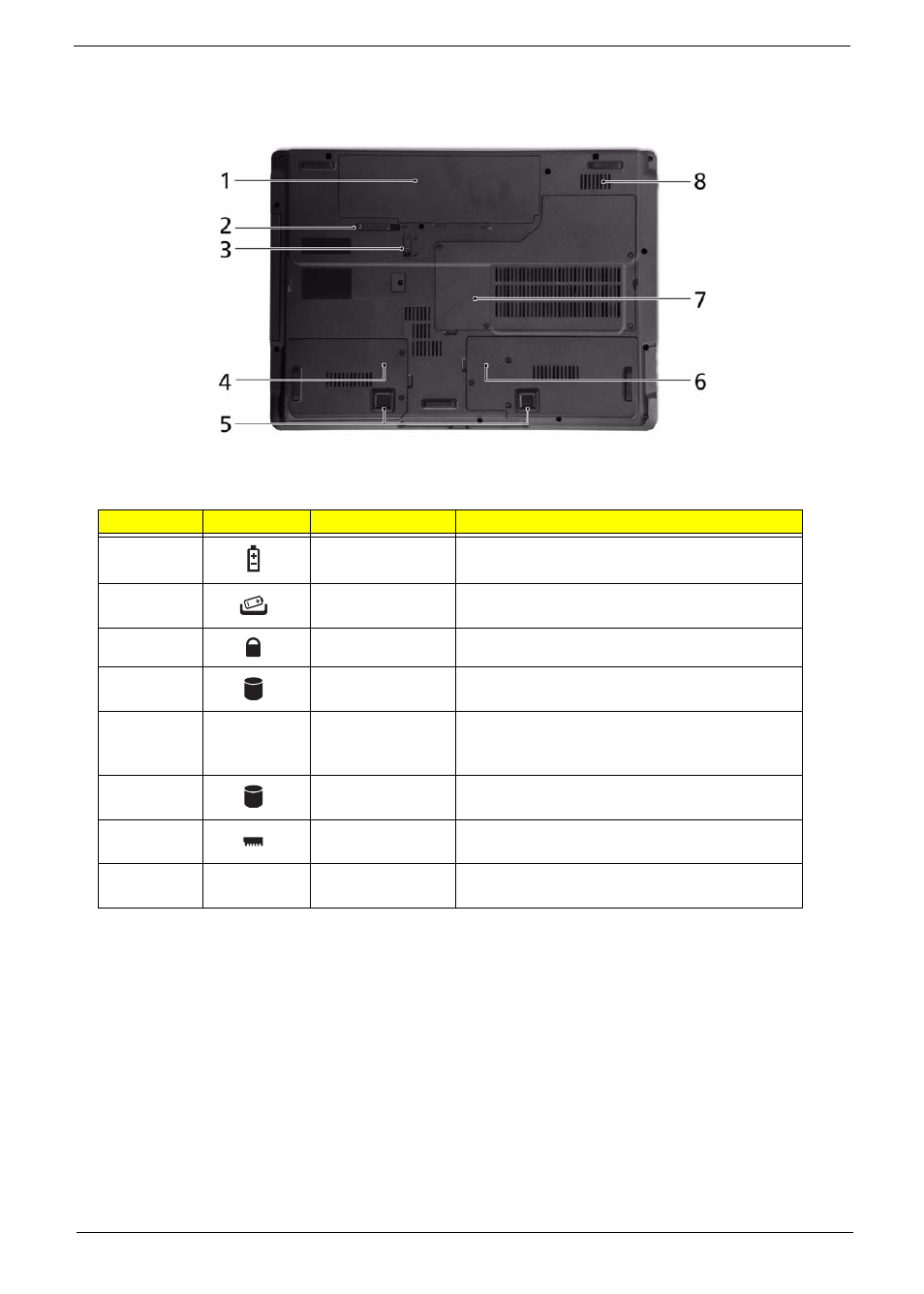

Bottom View
No. Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release
latch Releases the battery for removal.
3 Battery lock Locks the battery in position.
4 Hard disk bay -
Main Houses the computer's hard disk (secured with
screws).
5 Acer DASP (Disk
Anti-Shock
Protection) Protects the hard disk drive from shocks and
bumps (only for certain models).
6 Hard disk bay -
Secondary Houses the computer’s hard disk (secured with
screws) (only for certain models).
7 Memory
compartment Houses the computer's main memory.
8 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
