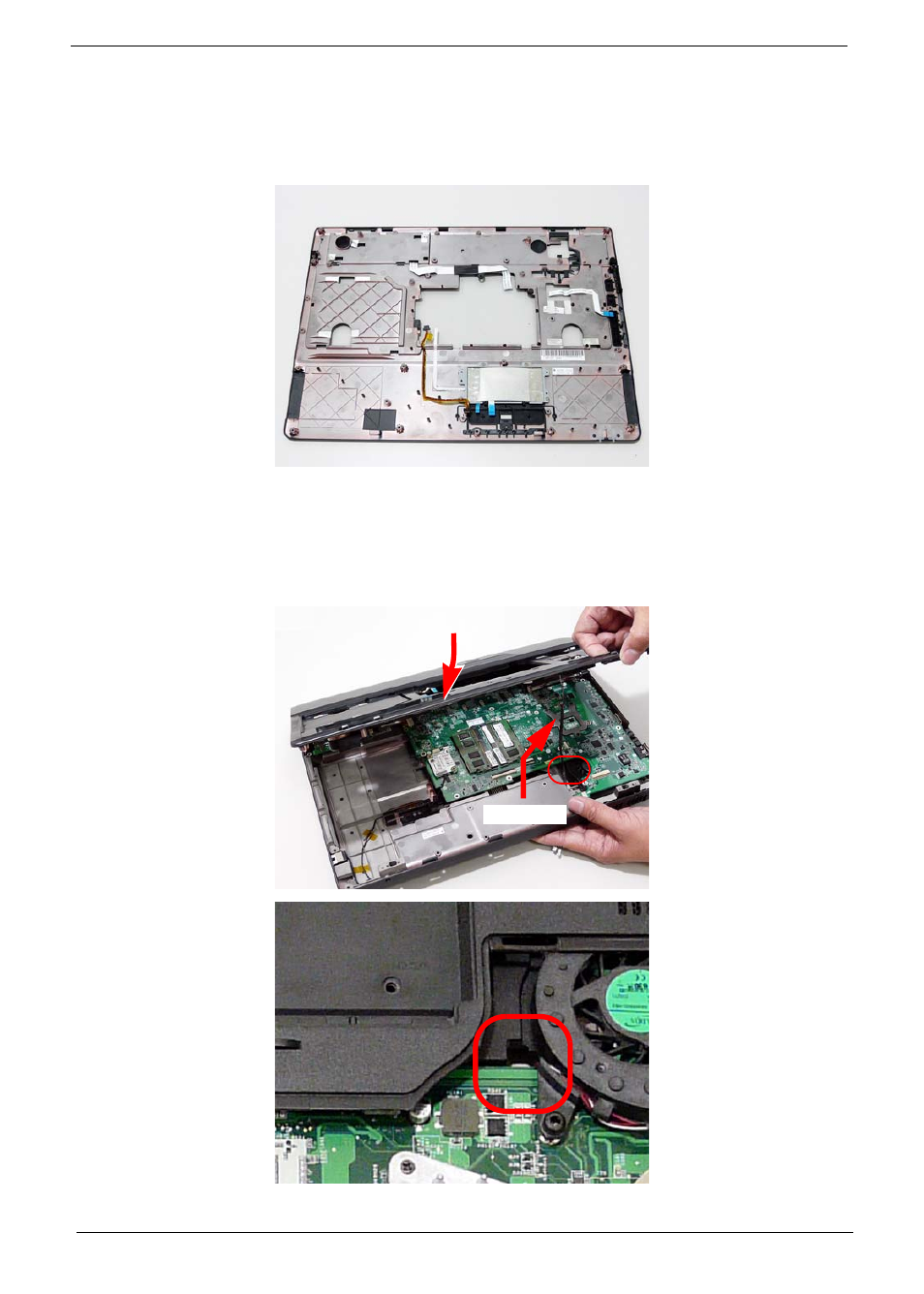

Replacing the TouchPad
1. Connect the TouchPad cable to the TouchPad board.
IMPORTANT:The TouchPad cannot be removed individually. To replace the TouchPad, replace the entire
Upper Cover.
Replacing the Upper Cover
1. Tilt the Upper cover and insert the back of the cover into place.
2. While holding the Upper Cover at an angle, insert the MIC cable through the lower base taking care to ensure
that the cable is accessible from the bottom cover.
MIC Cable
