Removing the Inverter Board
1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 89.

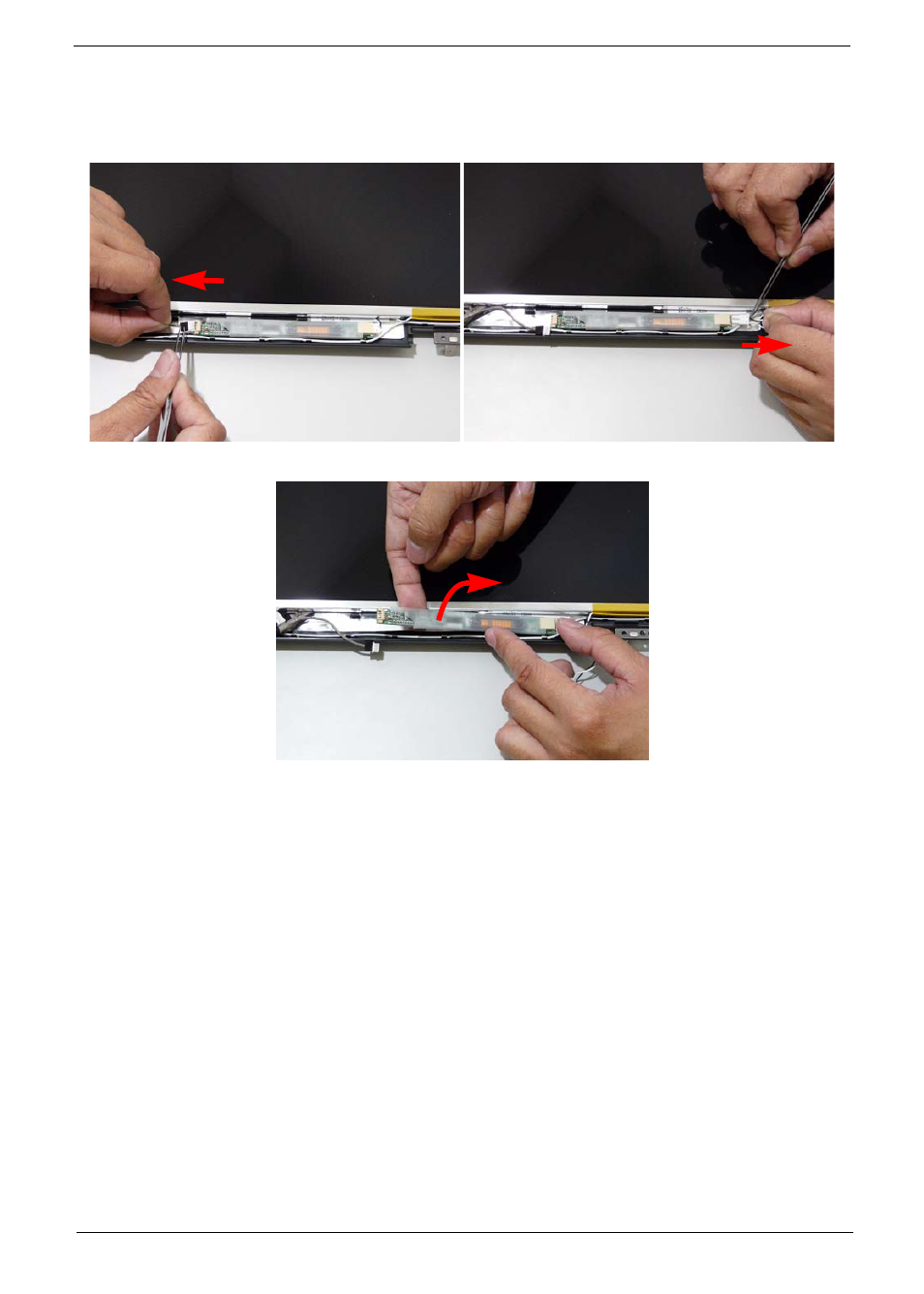

2. Disconnect the left and right Inverter board cables as shown.
3. Lift the Inverter board clear of the LCD Module.
