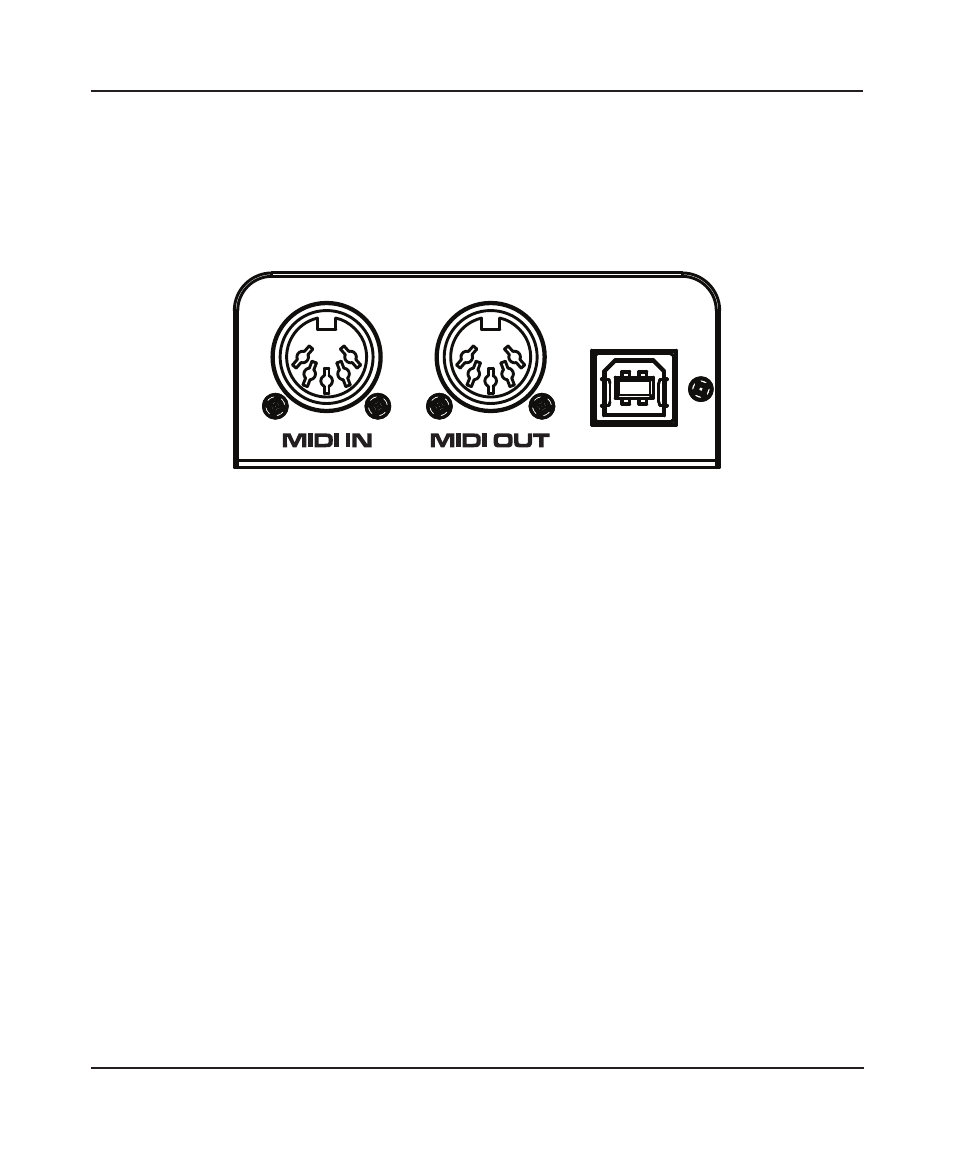

2. Connections
8
2 Connections
Any of the controls on TWEAKER can be configured to provide a wide range of functionality. Here
are some basic terms and uses for the controls.
2.1 USB
The USB port connects to your computer to send and receive MIDI message, update the firmware,
and power the unit. This port is available to your software as Tweaker Port 1.
2.2 MIDI In
The MIDI Input port provides a standard 5 PIN MIDI jack to connect other MIDI devices to TWEAKER.
MIDI input data is then routed over USB to the host computer, and is available to your software on
the second port named “Tweaker Port 2.”
2.3 MIDI Out
The MIDI Output port provides a standard 5 PIN MIDI jack for outputting MIDI from your computer,
over the USB cable, and to the MIDI jack. TWEAKER will also send its data from the MIDI Out jack. This
MIDI Output can be accessed on your computer via the port named “Tweaker Port 2.”
