SECTION 2 - ASSEMBLY
2-28

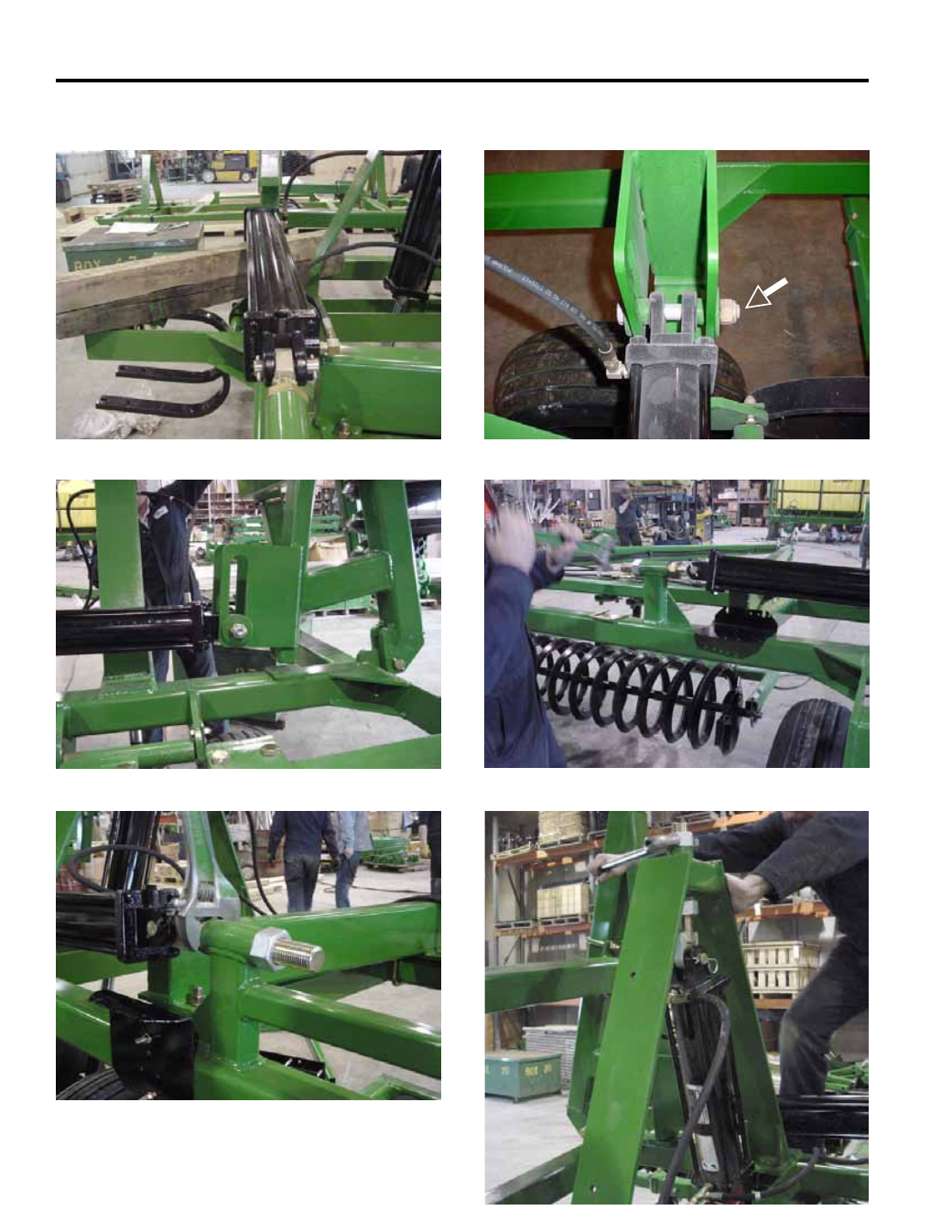

HYD. FOLD PACKER ASSEMBLY - PHOTO SUPPLEMENT – 42’ SHOWN
Charge Hydraulic System
44a. Extend and retract wing lift cylinders. 44b. Attach rod end of wing lift cylinders.
44c. Raise wings. 45. Adjust eye bolts so Wing rests on Center.
46. Tighten Wing Lift Cylinder eye bolts (above).
46. Tighten Main Lift Cylinder eye bolts (right).
MUST BE
FREE TO
ROTATE
