SECTION 2 - ASSEMBLY
2-21

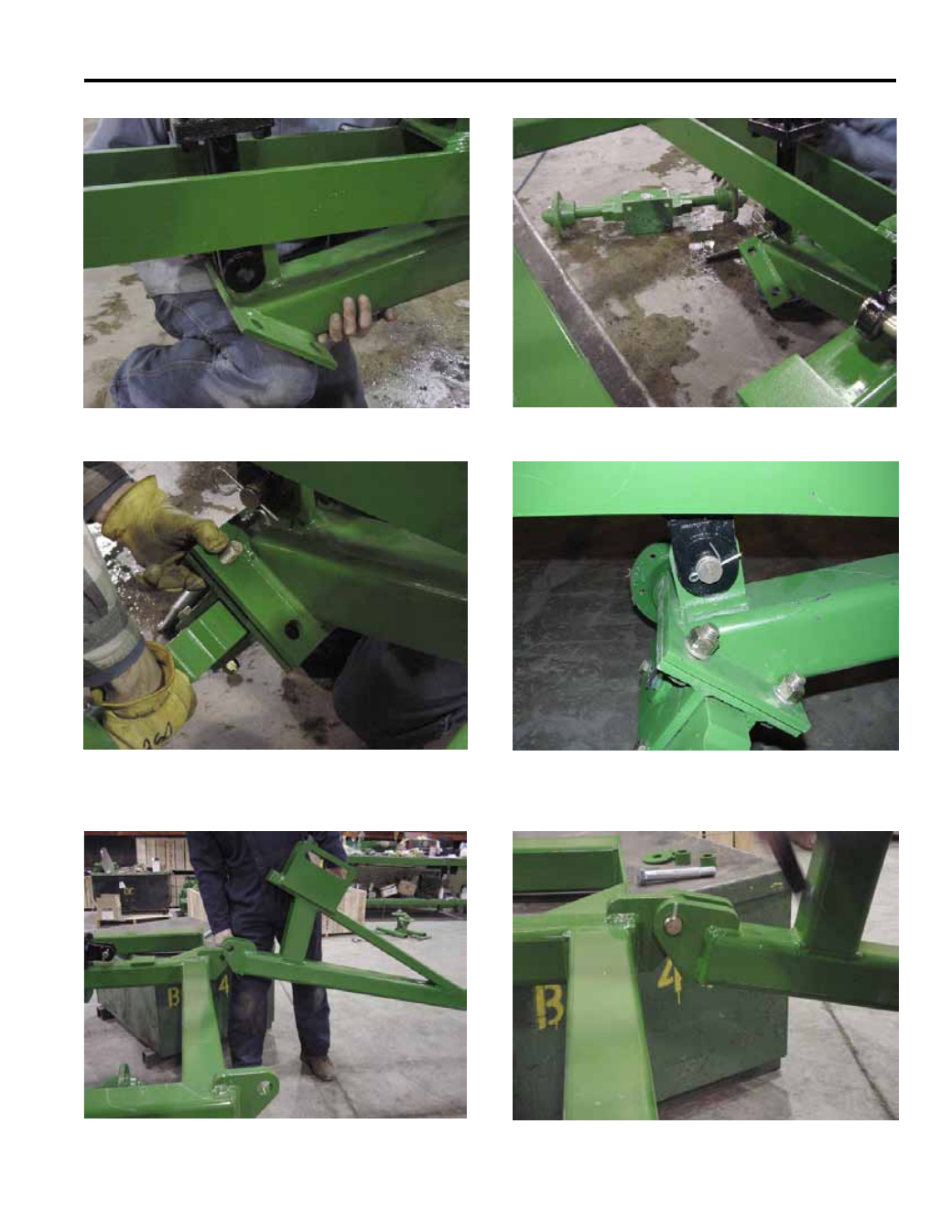

HYD. FOLD PACKER ASSEMBLY - PHOTO SUPPLEMENT – 42’ SHOWN
10. Connect rod end of main lift cylinder.
11. Position Walking Axle assembly.
12. Secure Walking Axle to Lift Arm.
13. Walking Axle Assembly installed.
Wings
14. Connect rear Wings to Center.
15. Install wing pivot pins, secure with roll
pins.
