HFRC_CHPPR_ASSMBLY

9/18/2012

8X0117

3/4 X 7"

8C5820

8K4396

8X0260

3/4" N

8X0306

3/4" LW

8C1751

3/4 X 3 X 6"

8X0265

3/4" LN

8X0246

1/2" FN

8X0064

CRG 1/2 X 1-1/2"

8C9017

8X0244

1/2" FLG TOP LOCK NUT

8C1736

1/2 X 4-1/4 X 5-1/4"

8X0240

1/2" N

8C0150

8C0216

BLADE 3/8x3 - 16-3/8"

ASSEMBLY WIDTH

QTY

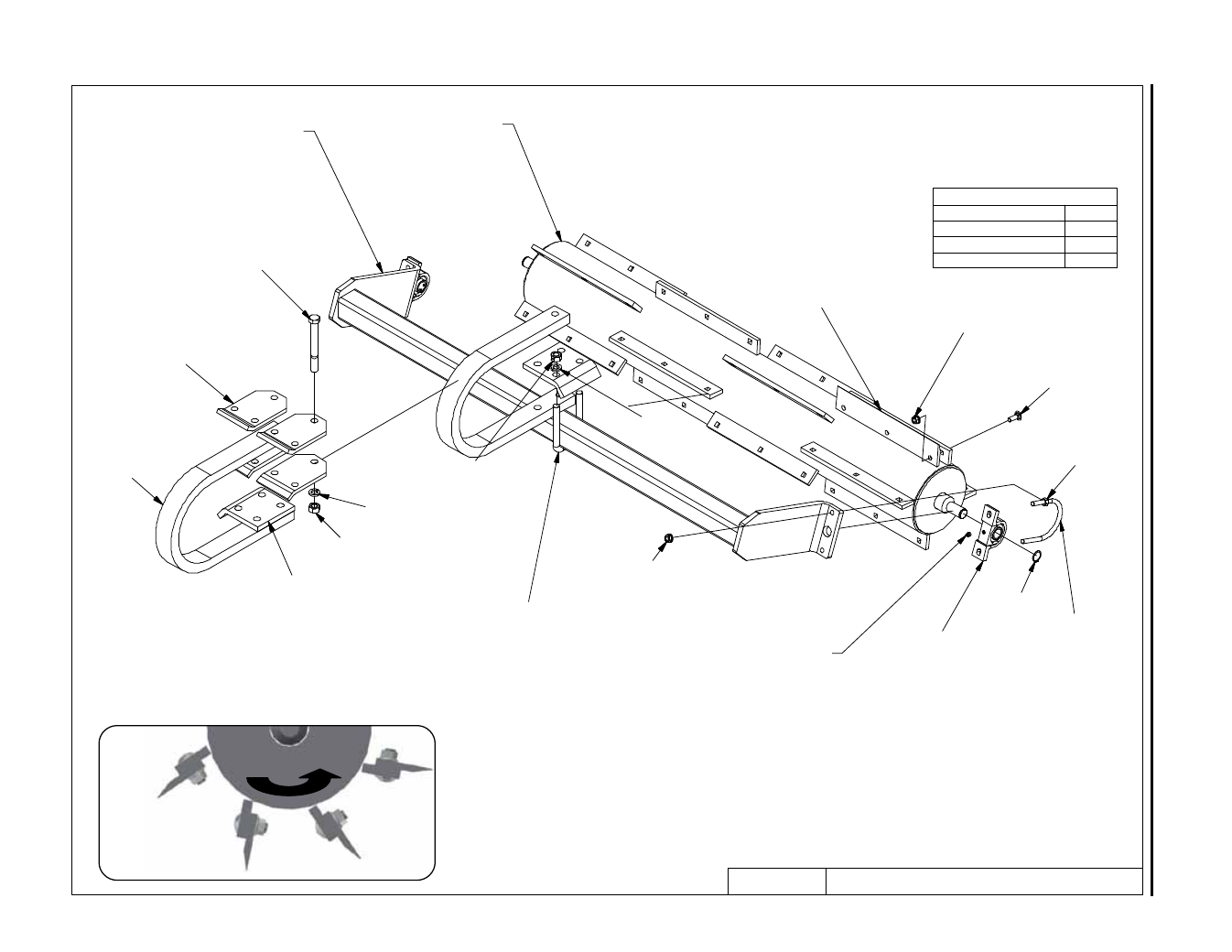

ROLLING CHOPPER ASSEMBLY

8C9030 (4')

8C9035 (5')

8C9040 (7')

FRAME

8C9070 (4')

8C9075 (5')

8C9080 (7')

ROLLING

CHOPPER

ASSEMBLY

8C2002

8X0725

ZERK 1/8" MPT

8X0306

3/4" LW

FRONT

BACK

LEFT

SIDE

VIEW

8Z0210

NOTE: Decal shows correct

orientation of Rolling Chopper.

SECTION 4 - P

AR
TS

4-13
