Summers Hydraulic Fold Coil - Manual (Page 104)

DETAIL A
A
46' THROUGH 62' WING 9/18/2012 9PD6275.iam/
8X0281
NY-LOCK 1"
8C6010
8C6000
8C6010
8X0140
1 X 7"
8C5180
8X0260
3/4" N
8X0306
3/4" LW
8D3031
8X0260
3/4" N
8X0306
3/4" LW
8K5515
3/4 X 4 X 6"
8K5515
3/4 X 4 X 6"
8X0260
3/4" N
8X0281
NY-LOCK 1"
8C5980
8C5920
8X0140
1 X 7"
8C5980
8C6010
8C5910
8X0260
3/4" N
8X0306
3/4" LW
8K5515
3/4 X 4 X 6"
8C5160
L 2.5 x 2.5 x 1/4
8D3031
8C5170
8C5192
8K5515
3/4 X 4 X 6"

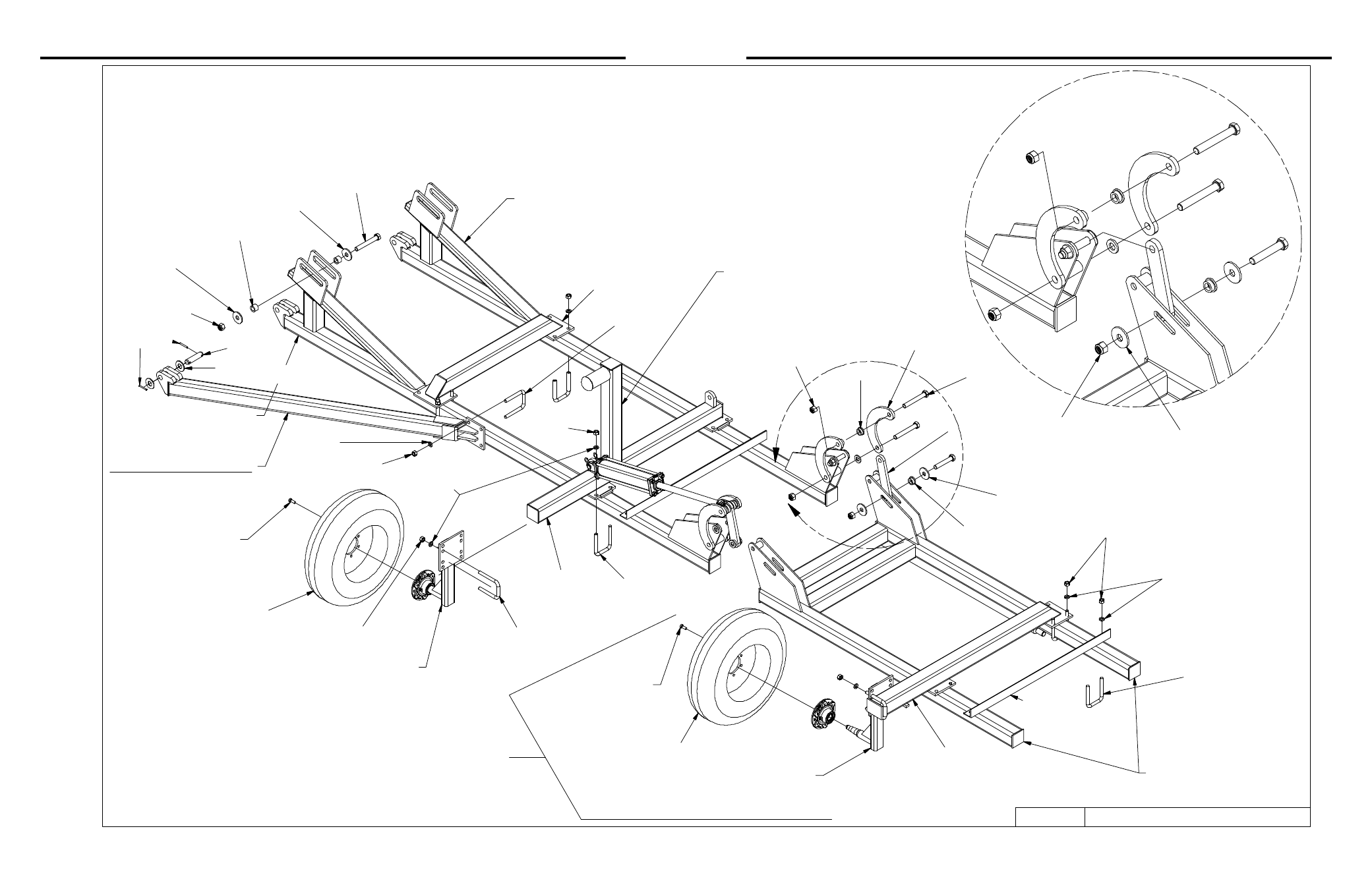

WING ASSEMBLY 5-SECTION IMPLEMENT
46' - 62' (LEFT HAND 62' SHOWN)
8R6914
9/16" WHEEL BOLT
8C5510
W/611 HUB
8C5500
LESS HUB
8C5510
W/611 HUB
8C5500
LESS HUB
GAUGE WHEEL
(8C6200):
OPTIONAL 46'-56'
STANDARD 58'-62'
8C5402 (46'-56') 62.8"
8C5412 (58'-62') 84.5"
8C5192
8C5310 (46'-50') 119.8"
8C5370 (51'-62') 145"
8C5300 (46'-50') NO CYL. MNT
8C5370 (51'-62') SHOWN 8X0281
NY-LOCK 1" 8C6010
46'-50' 51'-62'
8C5130 8C5132 L (SHOWN)
8C5135 8C5137 R
8K9108
8X0326
1-1/4" ID FW
8X0528
3/8x2-1/2" RP
8R6914
9/16" WHEEL BOLTS
SECTION 4 - PARTS SECTION 4 - PARTS
4-6
