Thrust actuator ARI-PREMIO
5.5.10 Integrated temperature controller dTRON 316
The integrated temperature controller controls temperatures, which are measured by input-
connected temperature sensors, to a manual given setpoint by means of a three-step
output connected with the actuator.
5.5.10.1 Installation of the dTRON 316
The dTRON 316 can be mounted in the ARI-PREMIO as a complete unit with a mounting
kit.
It cannot be combined with ES11.
To install the dTRON 316 proceed as follows:
In addition to “5.4.3 Connection”, the electrical connection of the dTRON 316 has to be
done in the following way:
- Mount the temperature controller on the gear plate by using the specific installation kit
(Fig. 19).
- Plug in the connector X2 of the dTRON 316 to the plug-in connector X1 (1/N, 11, 14) of the
actuator terminal.
- Connect the signal input and the individual wanted additional functions according the
wiring diagram to the dTRON 316.
- Connect the power supply L1 and N to the dTRON 316.
- For changing the working direction to heating signal = extending driving spindle, just
change the wires on the connectors 11 and 14.

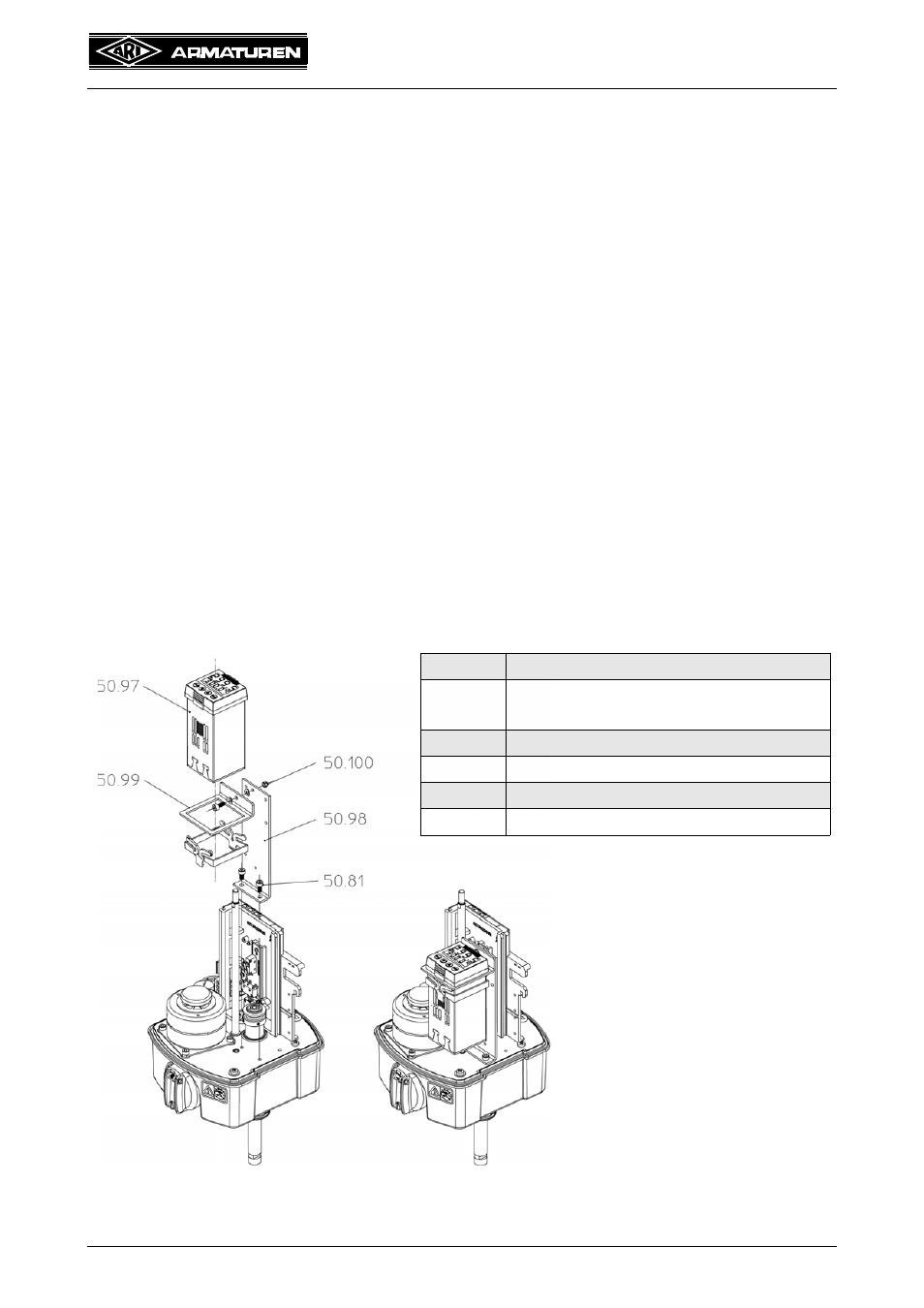

Fig. 19: Installing dTRON 316 ARI-PREMIO 2.2 – 5 kN
Pos. Designation
50.81 Head cap screw
DIN EN ISO 4762 - M4x8
50.97 Temperature controller dTRON 316
50.98 Fixing bracket (option dTRON)
50.99 Holding bracket (option dTRON)
50.100 Self-locking nut (option dTRON)
