Power wiring, Voltage/resistance/current input signal wiring, Temperature input signal wiring – Red Lion PAX2A User Manual

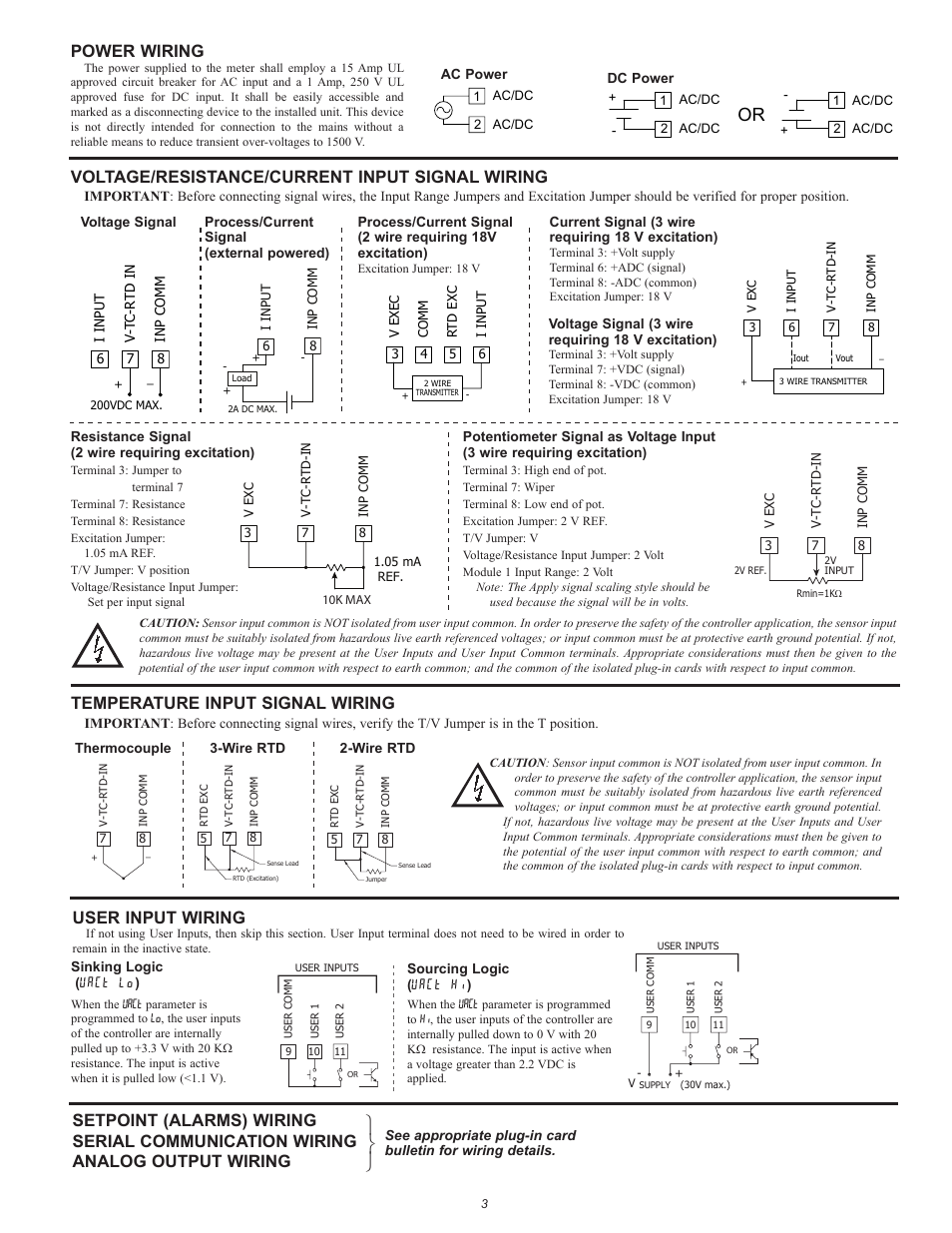

Page 3: User input wiring
