Chapter 4 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 17
0710-129

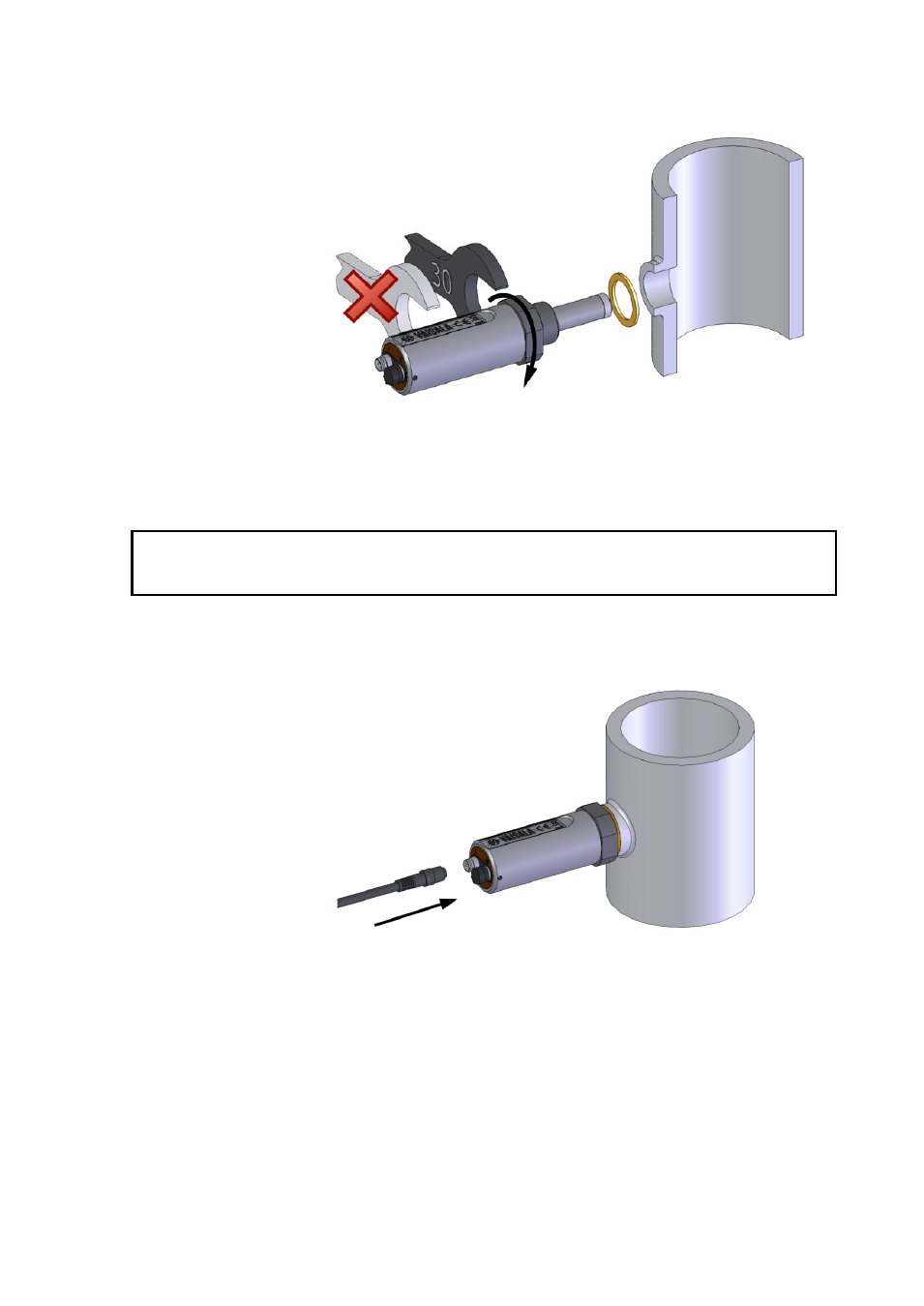

Figure 4
Installing the Transmitter
4.
Use a 30mm wrench to tighten the connection to 25 N m, as shown
in Figure 4. If you do not have a 30mm wrench, use a
1 3/16” wrench or an adjustable wrench.
CAUTION
Only tighten the probe from the 30mm nut. Do NOT apply force to other
points in the probe body.
5.
Connect the wires of the connection cable. When using cables
provided with DMT152 refer to the wiring section on page 19. See
the power supply requirements on page 22.
0710-130
Figure 5
Connecting the Cable
6.
Plug in the cable to the transmitter. Be sure to use the correct
connector; refer to section Wiring on page 19.
7.
Cover the unused connector on the transmitter with the rubber plug
that is attached to the transmitter.
