CHAPTER 4
OPERATION
This chapter contains information that is needed to operate this product.
Local Interface
HMT360 transmitter has four pushbuttons located on the housing cover.
The transmitter can be ordered either with or without a local display. The
display/keypad commands (see
Display/Keypad Commands on page 46
)
can be used to scale the outputs and select special output quantities (if the
transmitter configuration includes special output quantities). The optional
display shows the measurement results.
The keypad pushbuttons are indicated (from left to right) as C, Up, Dn, and
E (see
):
0603-039

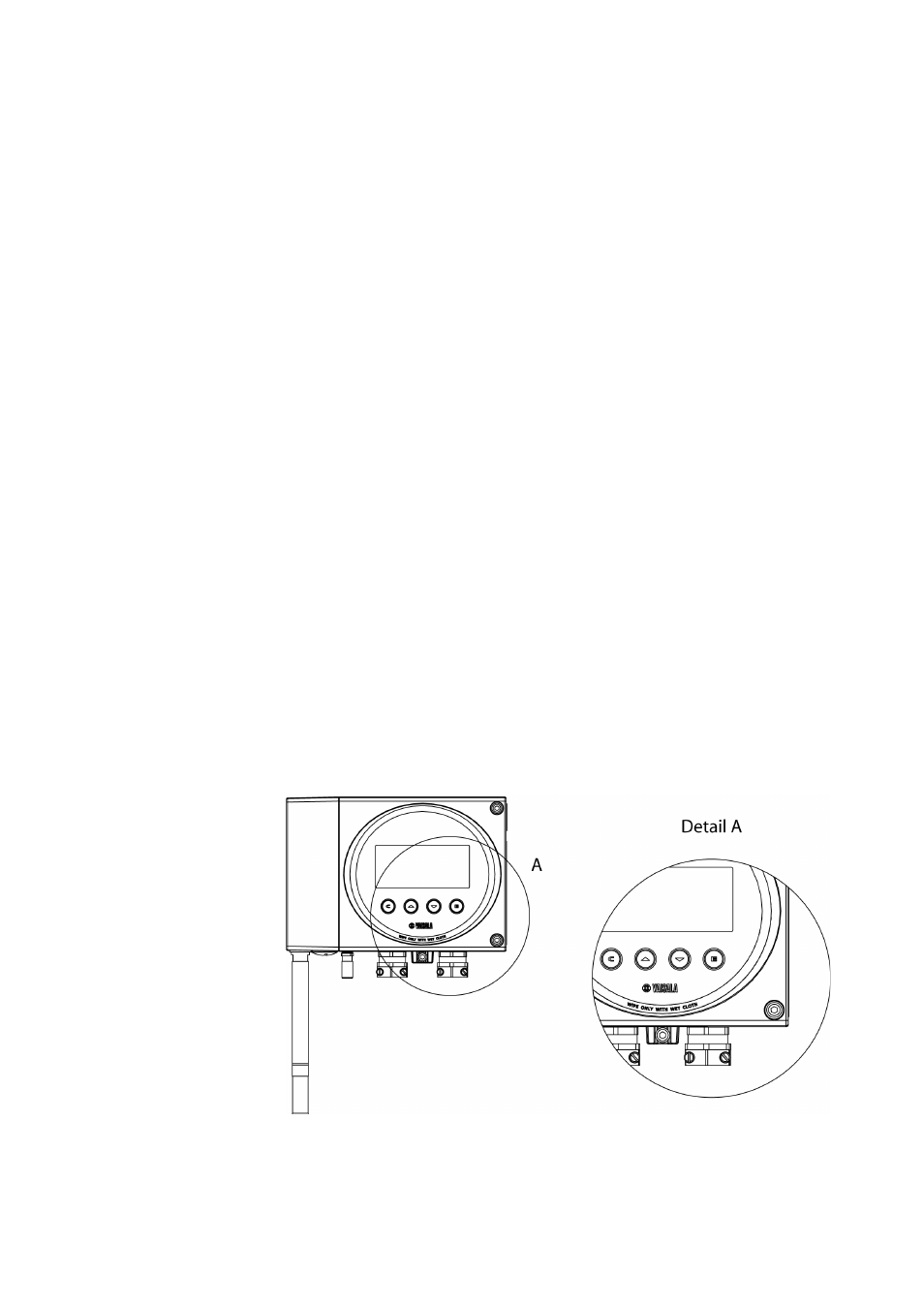

Figure 22
Local Display/Keypad Interface
