Hmt360 connected to a galvanic isolator, Figure 17, Hmt360 connected to galvanic isolator – Vaisala HMT360 User Manual
Page 41
Chapter 3 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 39
HMT360 Connected to a Galvanic Isolator
0505-278
0505-279
Figure 17

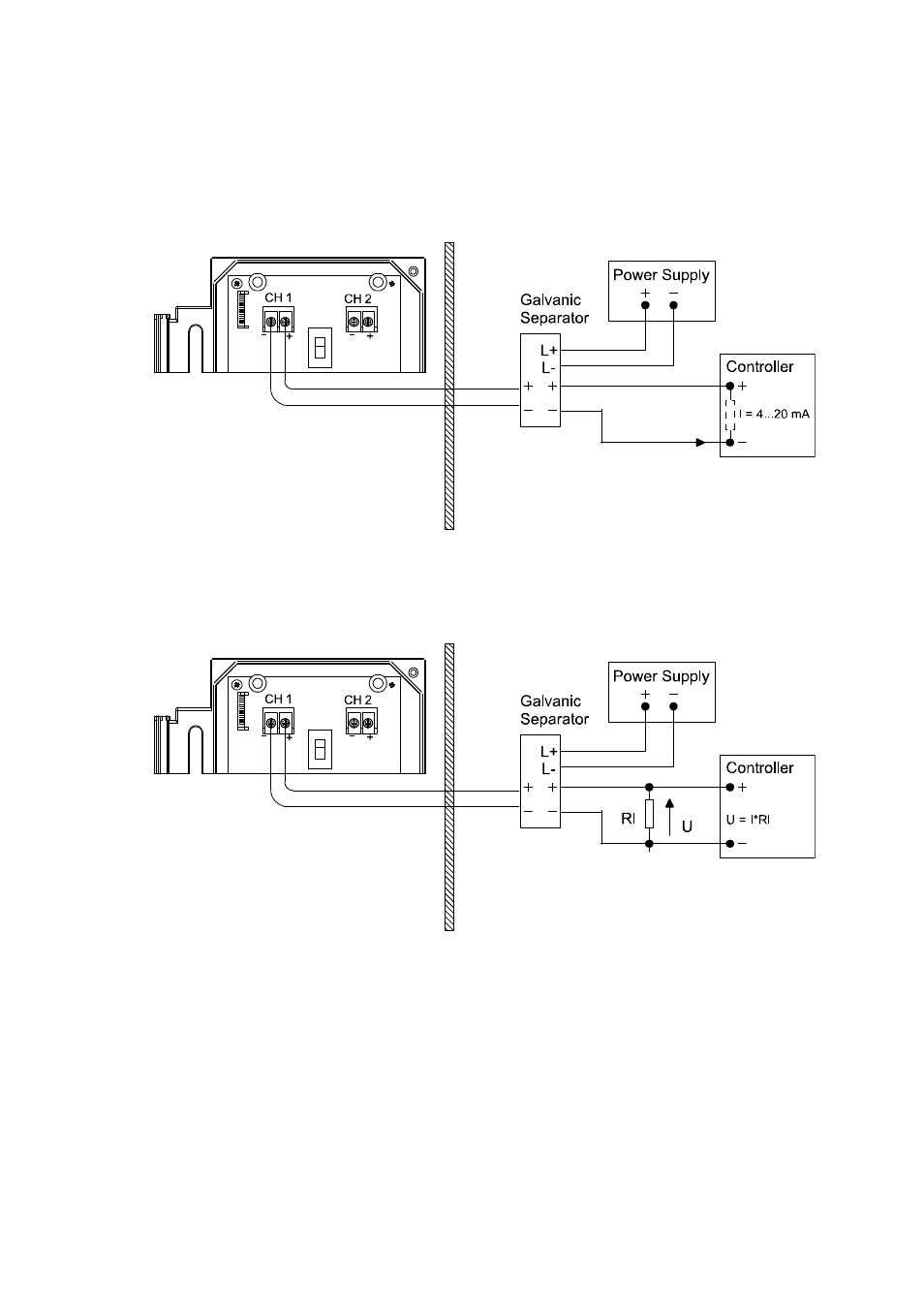

HMT360 Connected to Galvanic Isolator
HAZARDOUS AREA
SAFE AREA
a) current signal controller
I
HAZARDOUS AREA
SAFE AREA
b) voltage signal controller
