Chapter 3 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 25
HMP363 for Confined Spaces
The HMP363 is a small size (ø = 12mm) general-purpose probe suitable
for ducts and channels with the installation kit available from Vaisala.
The HMP363 provides for two measuring range options. The first probe
version is equipped with a flexible cable and can be used when measuring
in environments up to 80 ºC. The second version is suitable for measuring
in environments up to 120 ºC.
Section
HMP363/365/367 Duct Installation Kit on page 25
mounting of HMP363/367 with the optional duct installation kit.
HMP363/365/367 Duct Installation Kit
0508-021

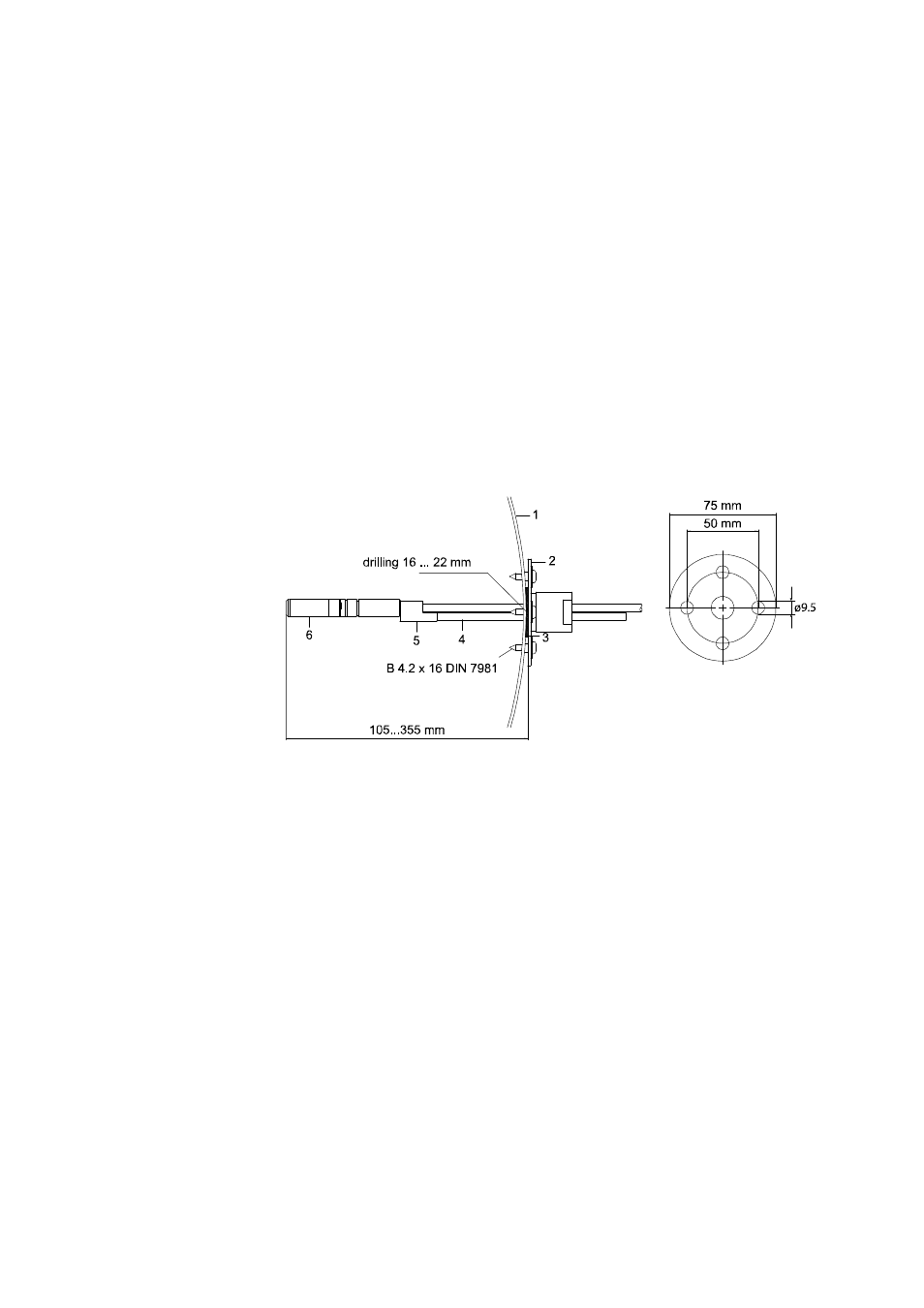

Figure 8
Installation of HMP363 Probe in Duct with Flange and
Supporting Bar
The following numbers refer to
:
1
=
Duct wall
2
=
Flange
3
=
Sealing ring
4
=
Supporting bar
5
=
Probe attaching part (to be fixed with supporting bar)
6
=
RH probe
