[24]
2.9 Enclosure
2.9.1 LCD Control Module (LCM)

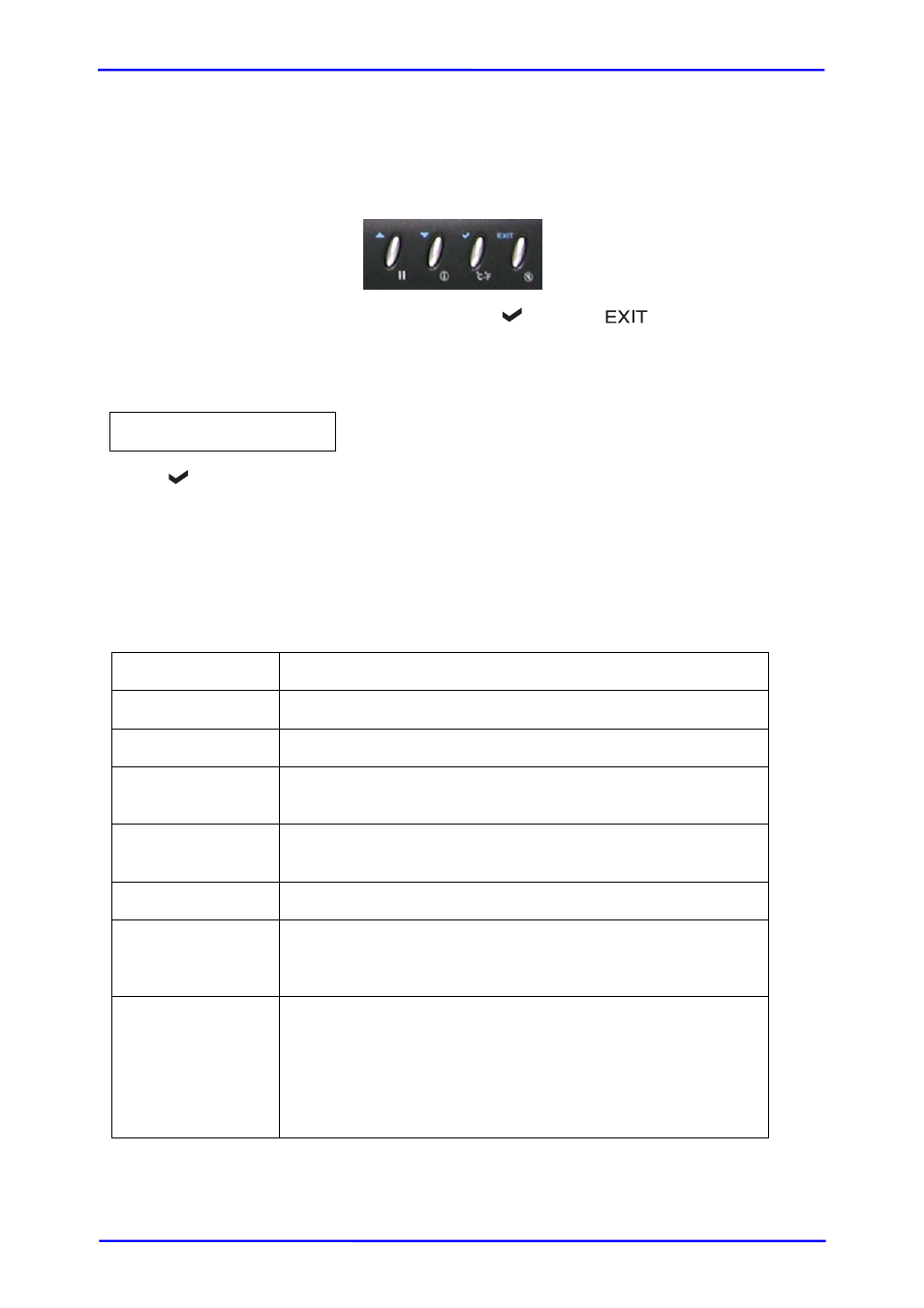

There are four buttons to control the subsystem LCM (LCD Control Module). These are:
c(Up) d(Down) (Enter) (Escape)
After booting up the system, the following screen shows management port IP and
model name:
192.168.10.50
iSCSI-Model-Name ←
Press “
”, the LCM functions “System Info,”, “Alarm Mute”, “Reset/Shutdown”,
“Quick Install”, Volume Wizard”, “View IP Setting”, “Change IP Config” and
“Reset to Default” will rotate by pressing c (up) and d (down).
When there is WARNING or ERROR level of event (LCM default filter), the LCM shows
the event log to give users more detail from front panel too.
The following table is function description.
System Info View System information of Firmware Version & RAM Size.
Alarm Mute Mute alarm when error occurs.
Reset/Shutdown Reset or shutdown controller.
Quick Install Quick three steps to create a volume. Please refer to
section 3.3 for operation in web UI.
Volume Wizard Smart steps to create a volume. Please refer to next
chapter for operation in web UI.
View IP Setting Display current IP address, subnet mask, and gateway.
Change IP
Config
Set IP address, subnet mask, and gateway. There are 2
selections, DHCP (Get IP address from DHCP server) or set
static IP.
Reset to Default Reset to default sets password to default: 00000000, and
set IP address to default as DHCP setting.
Default IP address: 192.168.10.50 (DHCP)
Default subnet mask: 255.255.255.0
Default gateway: 192.168.10.254
