APWeb – Initial Setup by Network Admin
85 Octaire Instruction Manual
4. Right click on the input channel (e.g., I_Ch:0001) that was just routed.
The Audio Control dialog box opens.
5. Move the slider to adjust the input gain (up increases; down decreases).
6. Close the Audio Control dialog box.
7. Repeat Steps 3 through 6 as necessary for additional sources (inputs) that will be routed to the same
destination (output).
Executing Macros
Once a macro is created for a system on APWeb, it can be executed from any PC with access to the
APWeb server for that system.
To execute a macro:
1. From any page in the site, click the Execute Macro link.
2. Click the macro button for the macro you want to execute.
When the text on the macro button turns green, the macro has successfully executed. (If the text on
the macro button turns red, the macro failed to execute.)

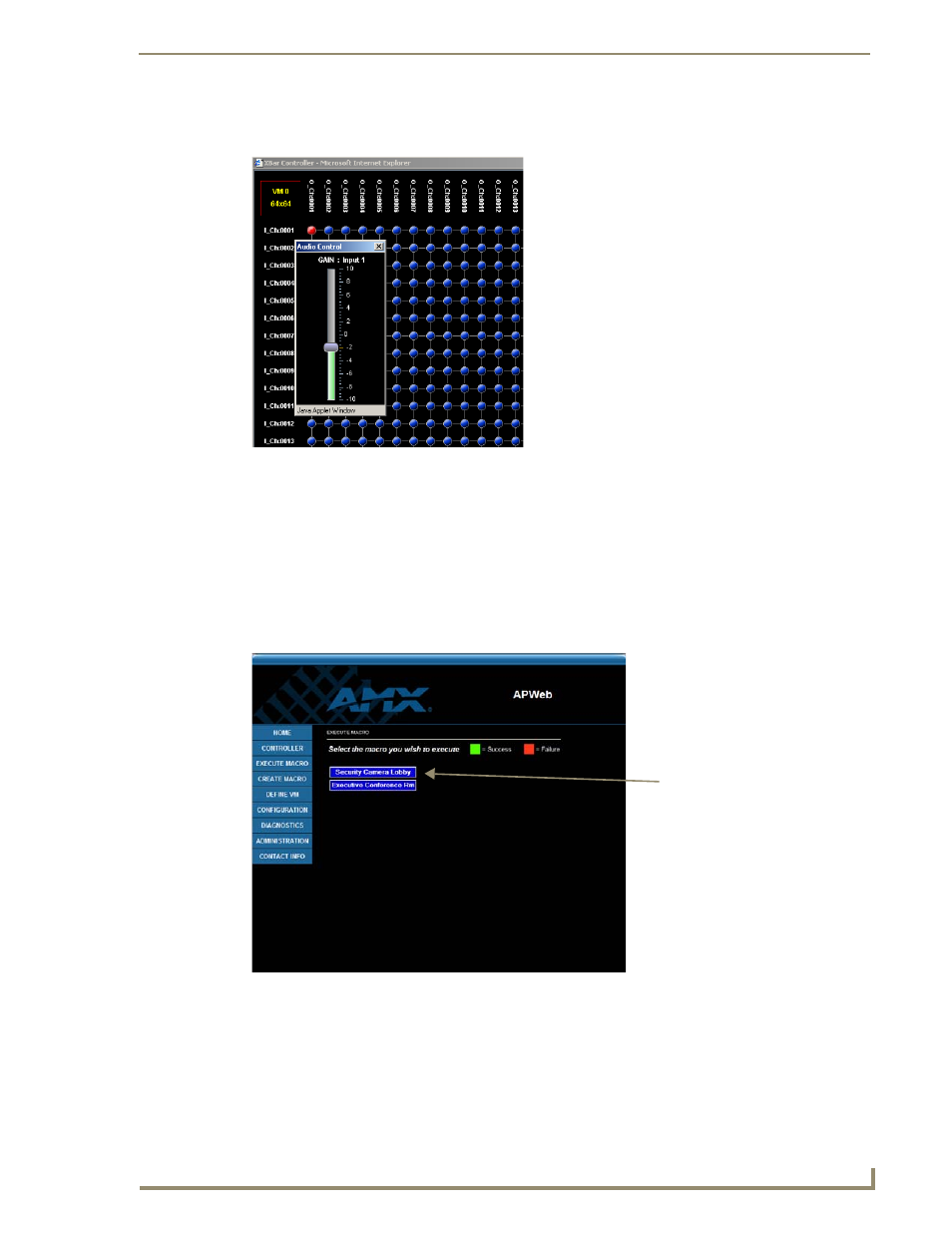

FIG. 42 Execute Macro page
Macros are listed after being created
on the Create/Edit Macro page
