Overview and General Specifications
13 Octaire Instruction Manual
Input and Output Connectors
Viewed from the rear of the enclosure, the connectors span the center from the power receptacles to the
control area with the inputs on the top with the outputs directly below. Input and output connectors are
the attachment points for source and destination devices that connect to the system. The rear of each
enclosure is populated with connectors for a single signal type (for configuration sizes, see the
“Applicability Notice” on page 7 through page 9). Inputs and outputs are numbered separately. The
numbers are above each connector and read left to right, continuing on the next row of connectors. All
video connectors are BNC, and audio connectors are 5-position terminal block. For systems containing
video enclosures, we recommend installing a color-coded band representing the enclosure’s signal type
on the first input BNC connector on each enclosure. A set of colored bands ships with the system; for the
colored band to signal correspondence, see the table on page 22.
For cabling and wiring information for each signal type, see page 21.
For signal specifications, see page 39.
General Specifications

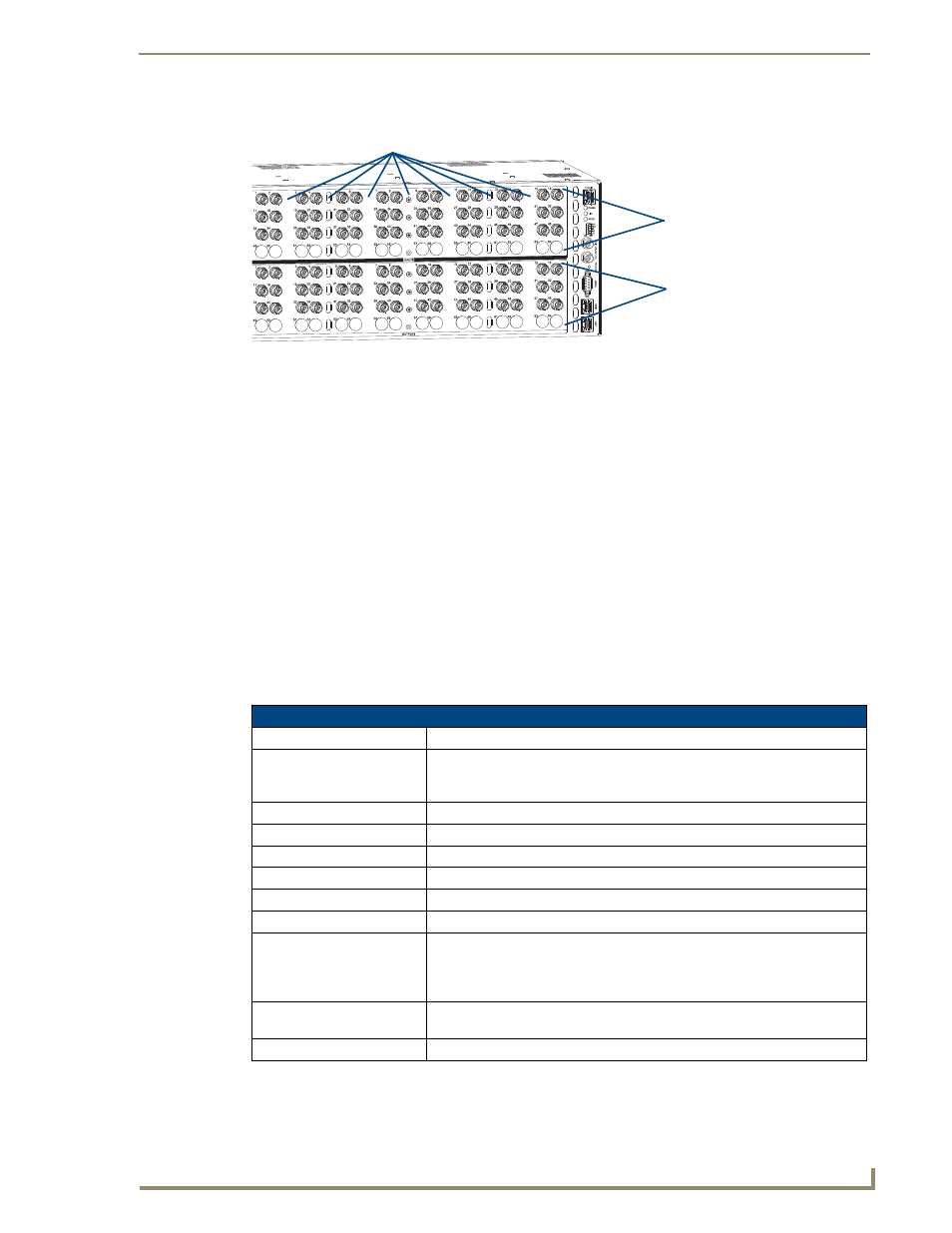

FIG. 6 Input and output connectors
Specifications
Approvals CE, UL, cUL, RoHS
AC Power 100 VAC to 240 VAC single phase (50 Hz to 60 Hz)
3.3 A @ 115 VAC max.
1.6 A @ 230 VAC max.
Power Consumption (max.) 260 W per enclosure
Power Consumption (typical) 120 W per enclosure, fully loaded
Operational Temperature 32° F to 113° F (0° C to 45° C)
Thermal Dissipation (max.) 887 BTU/hour
Thermal Dissipation (typical) 409 BTU/hour, fully loaded enclosure
Humidity 0 to 90% non-condensing
Enclosure Dimensions Approximately 12.0 in. (30.5 cm) depth (including connectors)
18.9 in. (48.0 cm) width with mounting ears
17.4 in. (44.2 cm) width without mounting ears
6.95 in. (17.65 cm) height, 4 RU
Weight Approximately 20 lbs. (9.07 kg) per enclosure (depending on configuration)
Approximately 24 lbs. (10.89 kg) packaged for shipping
MTBF 66,000 hours
Input connectors
Output connectors
Service Access Spacing between connectors (twice the space for easy cable connections)
