Overview and General Specifications
7
Octaire Instruction Manual
Overview and General Specifications
The Octaire Distribution Matrix is a fixed system consisting of a single video or audio enclosure or
multiple video enclosures with or without audio in a fixed input/output range.
Because the Octaire is
available in various fixed sizes, the illustrations in this manual may differ slightly from model(s) you
purchased. These cost-effective, off-the-shelf units pack the same high-performance specifications as
our other top lines.
Applicability Notice
In the following five tables, enclosures are designated as:
STD
–
standard video
UWB
–
ultra-wideband video
SYNC
–
digital HV sync
AUDIO
–
stereo audio
The designations for the video type are on labels on the rear of the enclosures.

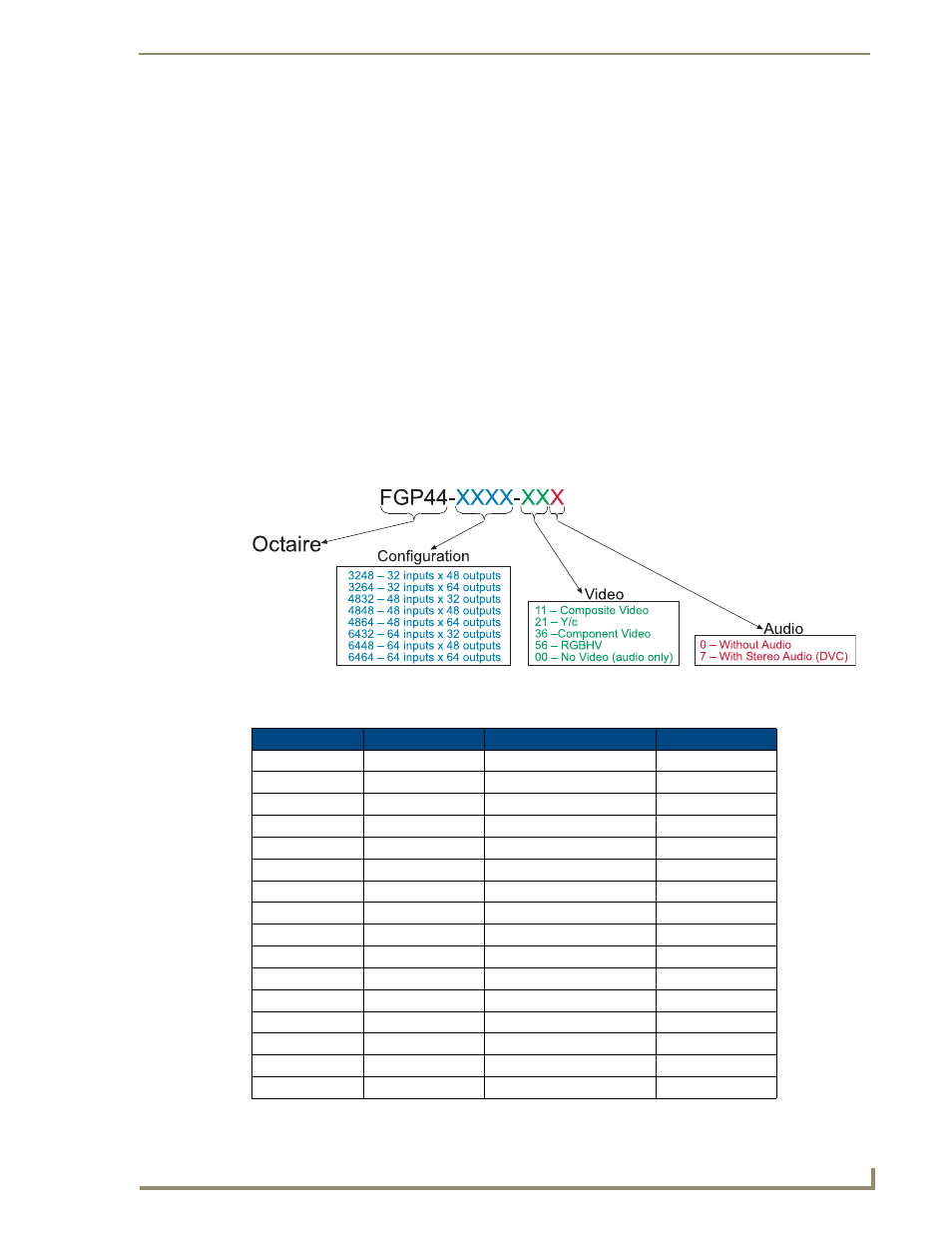

An explanation for the model numbers is provided in FIG. 1.
Composite Video and Composite Video+Stereo:
FIG. 1
Octaire model numbers
Model
Configuration
Description
# of Enclosures
FGP44-3248-110
32x48
Composite Video
1 STD
FGP44-3264-110
32x64
Composite Video
1 STD
FGP44-4832-110
48x32
Composite Video
1 STD
FGP44-4848-110
48x48
Composite Video
1 STD
FGP44-4864-110
48x64
Composite Video
1 STD
FGP44-6432-110
64x32
Composite Video
1 STD
FGP44-6448-110
64x48
Composite Video
1 STD
FGP44-6464-110
64x64
Composite Video
1 STD
FGP44-3248-117
32x48
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-3264-117
32x64
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-4832-117
48x32
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-4848-117
48x48
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-4864-117
48x64
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-6432-117
64x32
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-6448-117
64x48
Composite Video+Stereo
1 STD + 1 AUDIO
FGP44-6464-117
64x64
Composite Video+Stereo
1 STD + 1 AUDIO
