Octaire Control Panel Operation
56
Octaire Instruction Manual
6.
Press the Select Key.
The system is in Input Gain Mode (the available Input Keys turn blue, and all Output Keys are
turned off).
7.
Press the Input Key that corresponds to the source that was routed in Step 1.
The Adjust Input Gain Screen appears, displaying the gain range of the audio signal and the current
gain setting.
8.
Adjust the input gain by scrolling with the Control Dial.
The gain audibly adjusts as you scrolling the Control Dial.
9.
Repeat Steps 1 through 8 as necessary for additional sources (inputs) that will be routed to the same
destination (output).

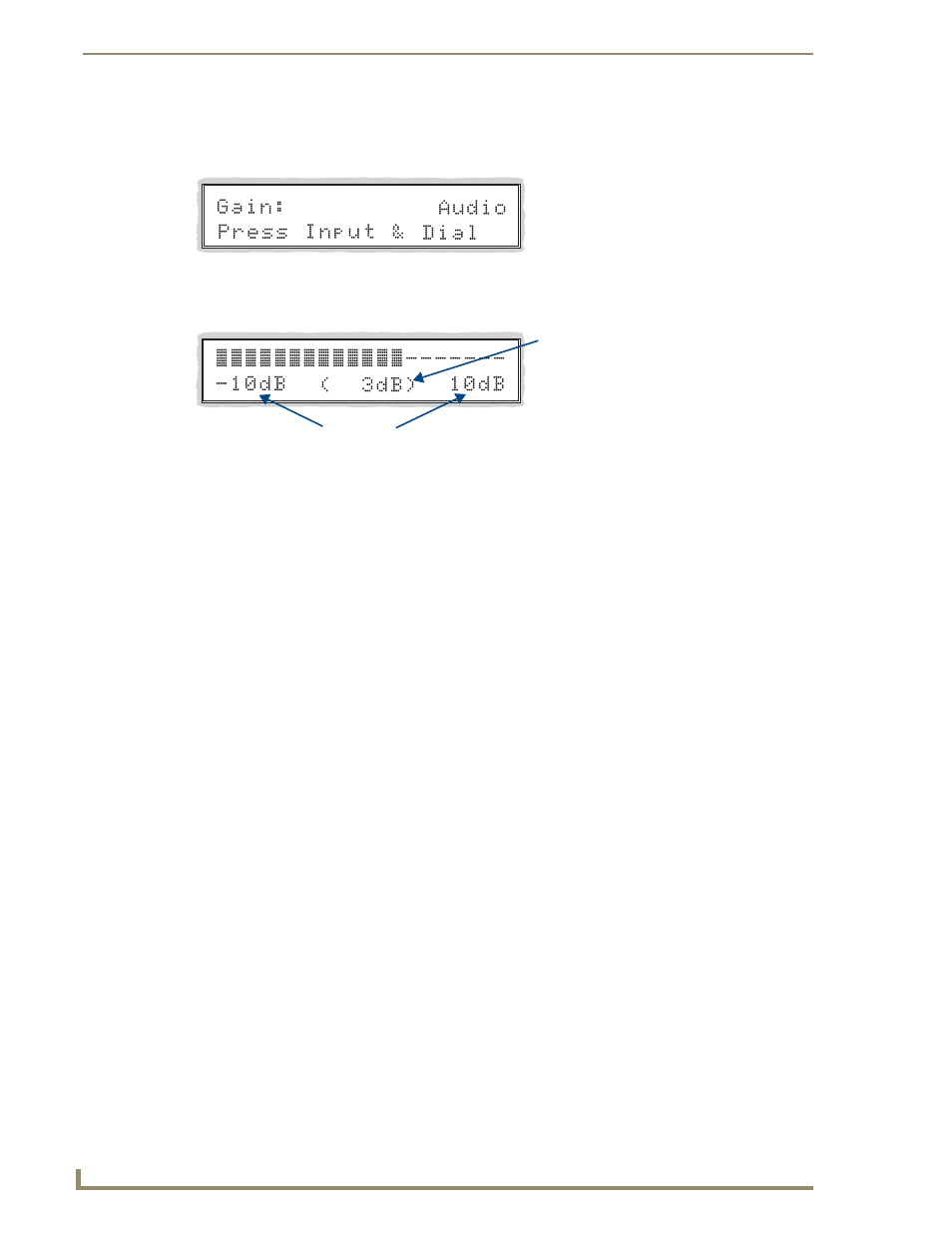

Gain range
Current gain setting
