AC WIRING ORIGINATION

Lexan cover protects AC Wiring
Compartment Board

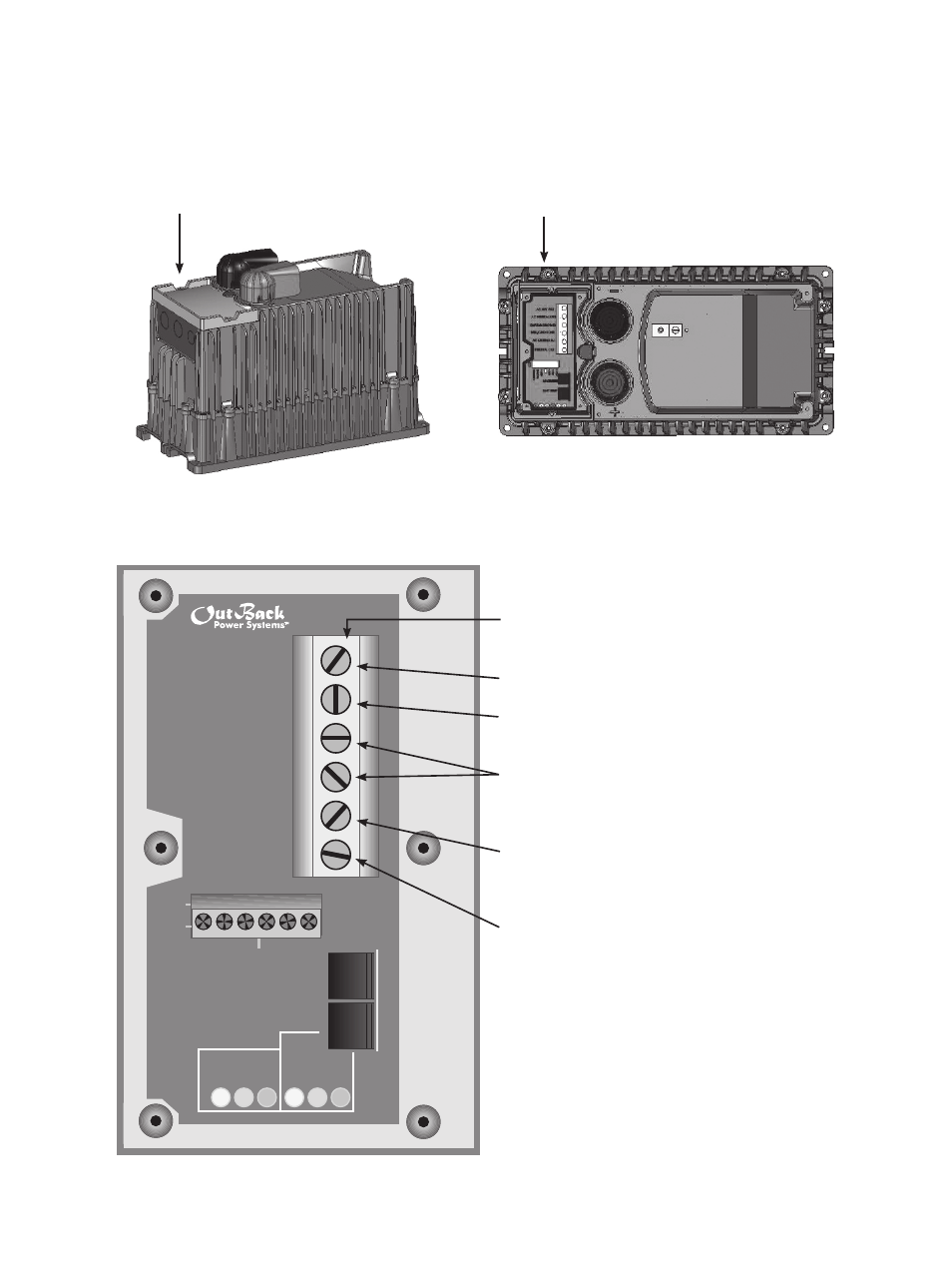

AC WIRING COMPARTMENT BOARD

• AC HOT OUT supplies power to the loads.

• AC NEUTRAL OUT acts as neutral leg for loads

supplied by the FX.

• CHASSIS GROUND connections are common

and act as grounds for both the incoming and
outgoing AC circuits.

• AC NEUTRAL IN acts as the neutral leg for AC

power supplied by either the grid or a generator
to the FX.

• AC HOT IN connects incoming AC from the grid

or a generator to the FX. This AC is used to run
loads and recharge batteries.

Note: 6 AWG ( (4.11 mm) is the largest wire
size the AC Wiring Compartment Board can
accommodate.

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

AC Terminal Block--secures AC
connections to the FX using set screws

AC Wiring Board
