2
I
NSTALLING THE
S
ENSOR

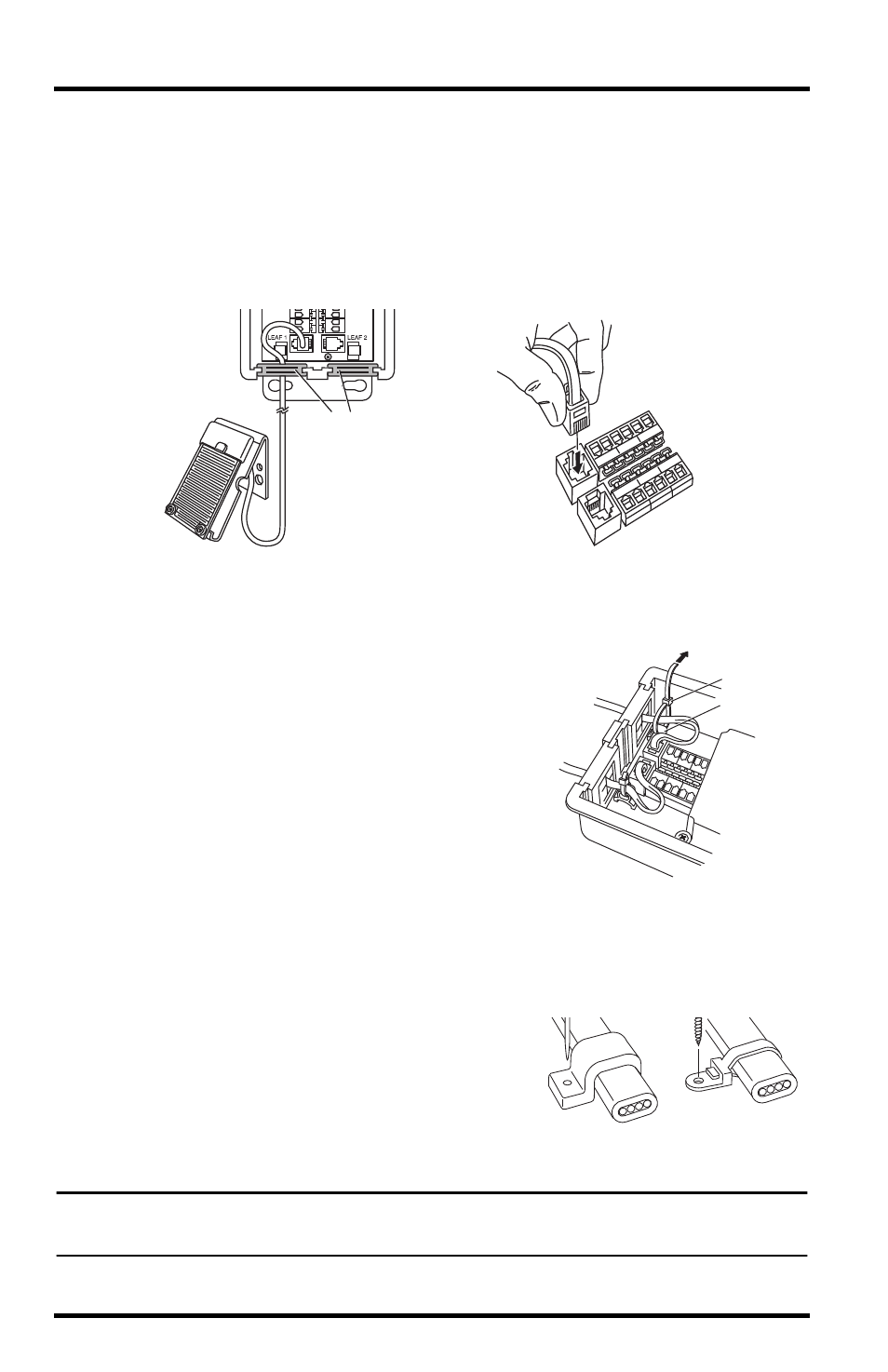

Connecting Leaf Wetness Sensors
1. Run the sensor cables up through the grommets on the bottom of the station
housing.
2. Insert the sensor cable modular plug into the Leaf 1 or Leaf 2 modular con-
nector.
Grommets
Connecting Leaf Wetness Sensors
Leaf Wetness Sensor Cables Run
Through Grommets
Finishing the Sensor Connections
Cable Tie
When tightening
cable tie, make sure
cables are on top of
cable tie mount.
Cable Tie
Mount
Securing Sensor Cables in the Station
1. Secure sensor cables to the cable
tie mounts located next to the
grommets.
2. To prevent fraying or cutting of cables,
secure them so they will not whip about in
the wind. Secure a cable to a metal pole by
wrapping electrical tape around them both.
Make sure cables are secure by placing
clips or ties approximately every 3 – 5' (1 –
1.6
m)
Cable Clip
Cable Tie
Securing Cables with Clips and Ties
Note: Do not use metal staples or a staple gun to secure cables. Metal staples — especially
when installed with a staple gun — have a tendency to cut the cables.
