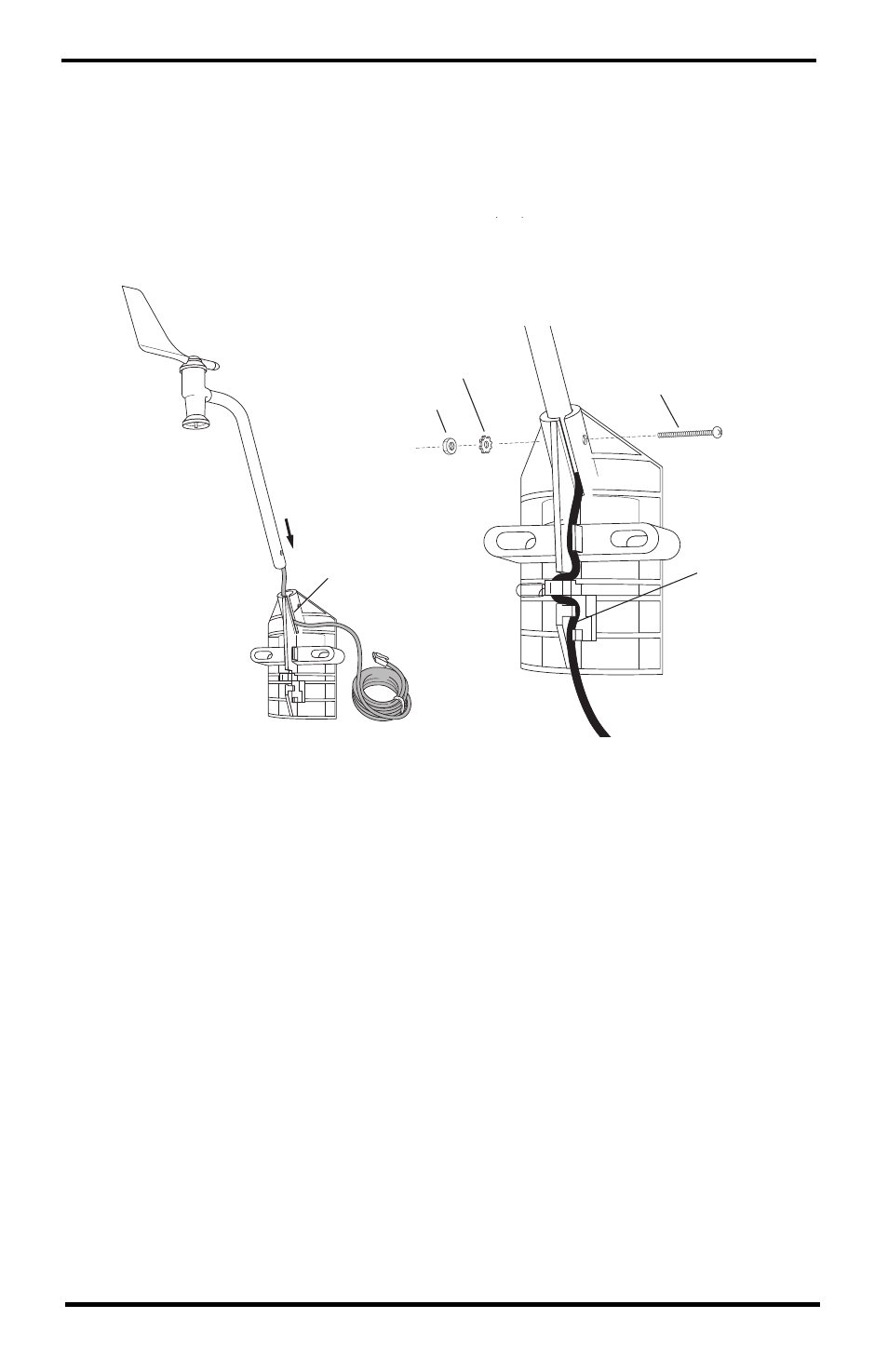

Attach the Anemometer Arm to the Base
1. Insert the anemometer arm into the base, sliding the cable through the notch in
the base as shown in illustration.
2. Be sure to line up the small hole in the arm with the holes in the base.
3. Insert the machine screw through the holes in the base and arm.
4. Slide the tooth-lock washer and hex nut onto the machine screw. Tighten the
hex nut while holding the screw with a Phillips head screwdriver to prevent it
from turning.
5. Press the sensor cable firmly and completely into the zig-zagging channel in
the base, starting from the arm and progressing downward to the bottom of the
base.
Insert
anemometer arm
into base
Slide cable
through notch
#4 Tooth
Lock Washer
Hex Nut
#4 x 1-1/8”
Machine Screw
IMPORTANT:
Make sure cable
is secure in channel
